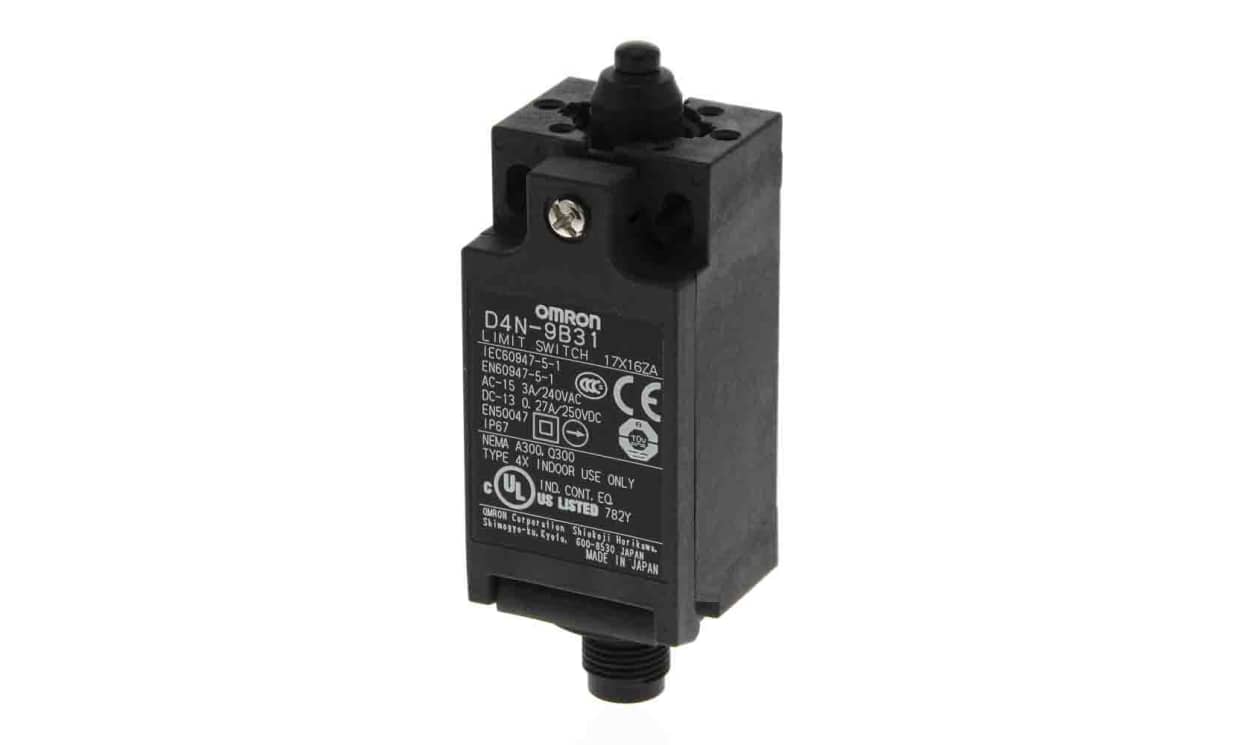

OMRON D4N-9B31 | D4N Plunger Limit Switch | 2NC/1NO Slow Action, M12, 10 A
Built to IP67, the OMRON D4N-9B31 D4N series plunger limit switch offers 2NC/1NO contacts and a rating of 10 A max at 240 V AC. The D4N-9B31 has a metal housing, an M12 connection and an operating range of -30 to +70 °C.
- 2NC/1NO contact configuration; DPST pole and throw, slow-action operation
- Maximum current: 10 A; maximum voltage: 240 V AC
- IP67 enclosure rating; metal housing; M12 connection
- Dimensions: 31 mm × 30 mm × 63.5 mm (L × W × D)
- Operating temperature: -30 to +70 °C
- Mechanical life: 15,000,000 operations
- Detailed Description
- Specifications
- Downloads
Omron D4N Series Limit Switch, 2NC/1NO Normal State Configuration, 10A Maximum Current - D4N-9B31
Features & Benefits
• Supports a high mechanical life of 15 million operations
• IP67 rating protects against dust and water ingress
• Accommodates a maximum current rating of 10A
Applications
• Suitable for activating safety switches in conveyors
• Utilised in machinery for position detection
• Important in robotic systems for limit feedback
• Applied in factory automation systems for control signals
What type of connection is required for installation?
What should be considered for proper installation?
What are the dimensions of the unit?
| Brand | Omron |
| Series | D4N |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 2NC/1NO |
| Maximum Current | 10A |
| Maximum AC Voltage | 240V |
| Action Type | Slow Action |
| Housing Material | Metal |
| Length | 31 mm (1.22 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Width | 30 mm (1.18 in) |
| Depth | 63.5 mm (2.50 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Mechanical Life | 15000000Operations |
| Connection Type | M12 |
| Standards Met | CE |
