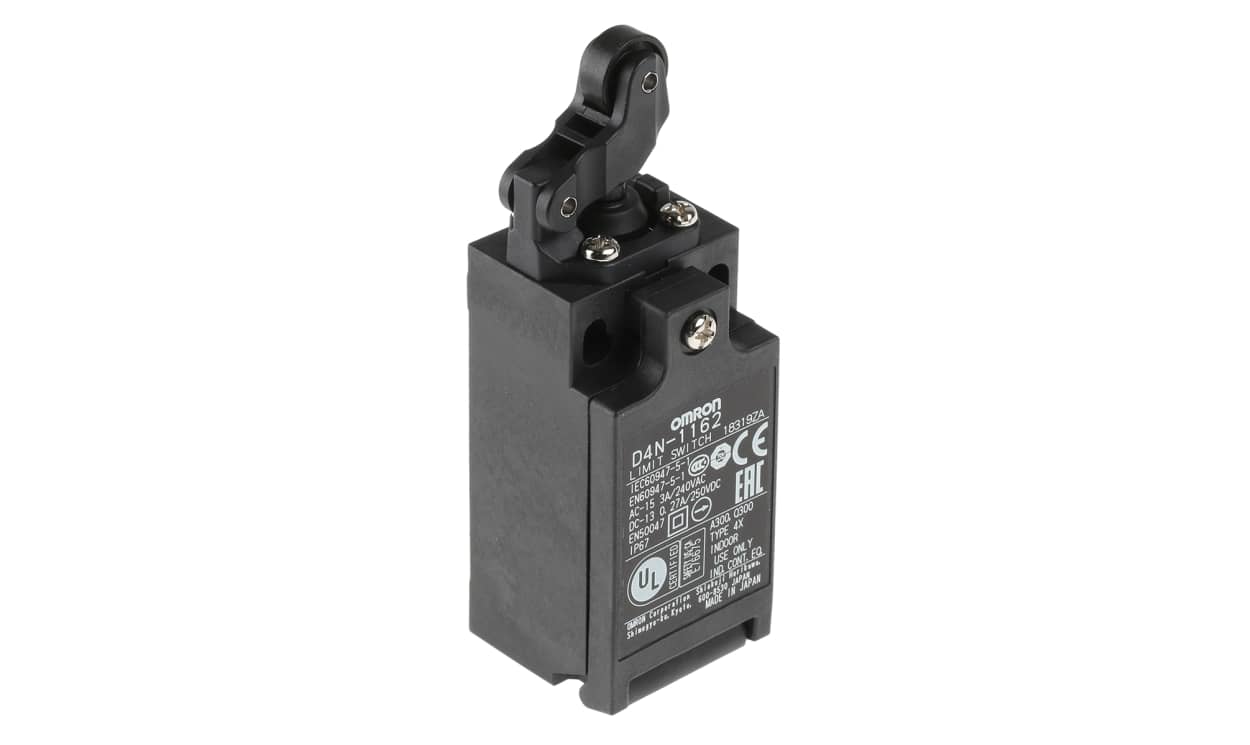

OMRON D4N-1162 | Limit Switch | D4N, 1NC/1NO, Pg13.5, IP67, Plastic
The OMRON D4N-1162 is a D4N series limit switch with 1NC/1NO snap-action contacts, one Pg13.5 conduit and an IP67 plastic housing. It is CE and cULus listed. Full ratings and dimensions are given in the OMRON datasheet.
- 1NC/1NO, snap action
- IP67, plastic housing
- Pg13.5 (1 conduit)
- CE, cULus
- -30 to +70 °C, 15,000,000 cycles
- 83.6 x 31 x 31.5 mm
- Detailed Description
- Specifications
- Features
- Downloads

OMRON Interlock Switch, 25mΩ Contact Resistance Maximum, 300V Rated Insulation Voltage - D4N Series - D4N-1162
Features & Benefits
• Head direction can be mounted in two directions for versatility
• Tolerance for 95% maximum relative humidity means it's suitable for use in damp areas
Applications
• Processing facilities
• Manufacturing industry
Can I change the load?
| Brand | Omron |
| Series | D4N |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Action Type | Snap Action |
| Housing Material | Plastic |
| Length | 83.6 mm (3.29 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Width | 31 mm (1.22 in) |
| Depth | 31.5 mm (1.24 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Mechanical Life | 15000000Cycles |
| Connection Type | PG13.5 |
| Standards Met | CE, cULus |
| Mounting Orientation | Horizontal |
Limit switch, One-way roller arm lever (horizontal), 1NC/1NO (snap-action), 1NC/1NO (snap-action), Pg13.5 (1-conduit)
