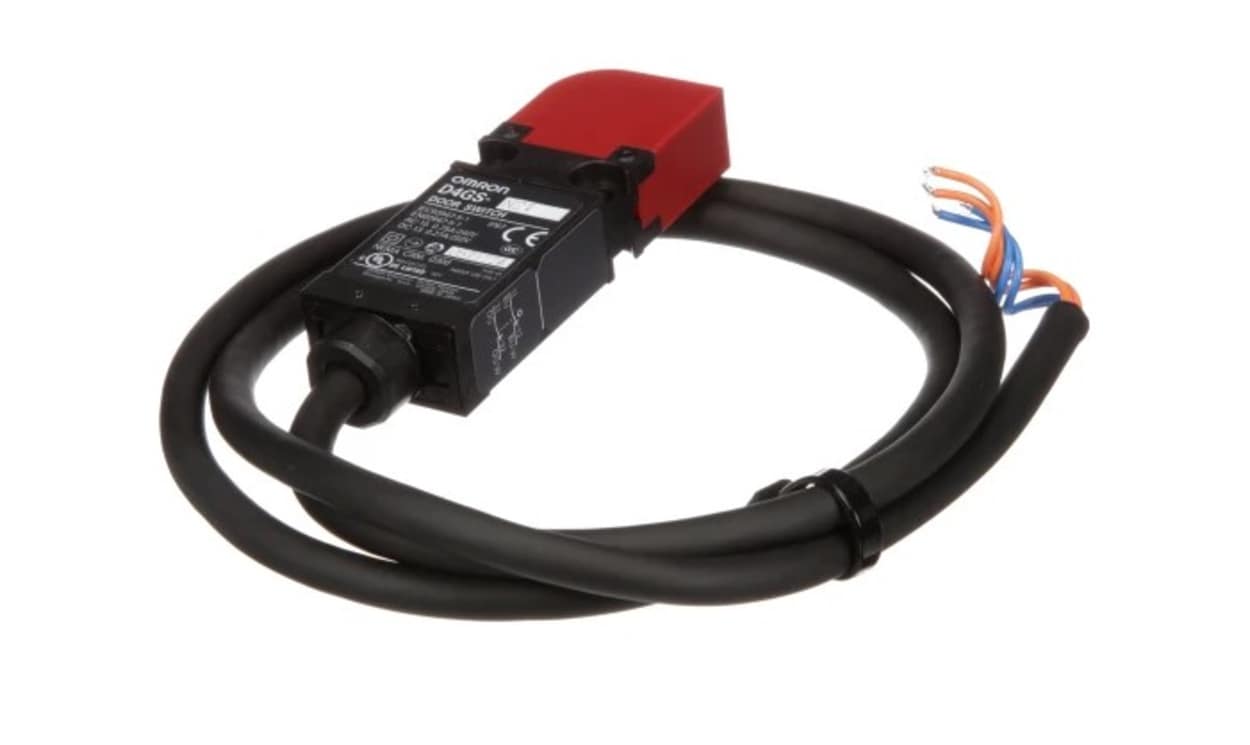

Omron D4GS-N2T, D4GS Safety Interlock Switch, 2NC, Keyed, Plastic

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4GS-N2T, D4GS Safety Interlock Switch, 2NC, Keyed, Plastic

Name: Omron D4GS-N2T, D4GS Safety Interlock Switch, 2NC, Keyed, Plastic
Brand: OMRON
SKU: D4GS-N2T
Availability: OutOfStock

Part Number : D4GS-N2T

Availability: Sold out

Detailed Description
Specifications
Downloads

D4GS-N Safety Interlock Switch

The D4GS-N IP67 rated safety door switch uses rust-resistant materials and incorporates a drain opening as effective countermeasures against problems caused by water.

Slim safety-door switch with a three-terminal contact construction
Reversible design allowing either front or rear mounting
Key mounting hole is designed with rubber to absorb vibration and shock
IP67 protection (applicable to main body only, key insertion face is IP00)

Standards

Meets EN (TÜV) standards and CE marking requirements along with a variety of international standard requirements, such as UL and CSA requirements. All NC contacts satisfy requirements for the direct opening mechanism.

Interlock Switch

Brand	Omron
Lock Style	Keyed
Normal State Configuration	2NC
Safety Contacts	NC
Maximum AC Voltage	240V
Maximum DC Voltage	250V
Connection Type	1m Cable
Housing Material	Plastic
IP Rating	IP67
Number of Head Directions	2
Series	D4GS
Depth	95.5mm
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+70°C
Width	17mm
Length	30mm
Maximum Current	2.5A
Auxiliary Contacts	1NC
