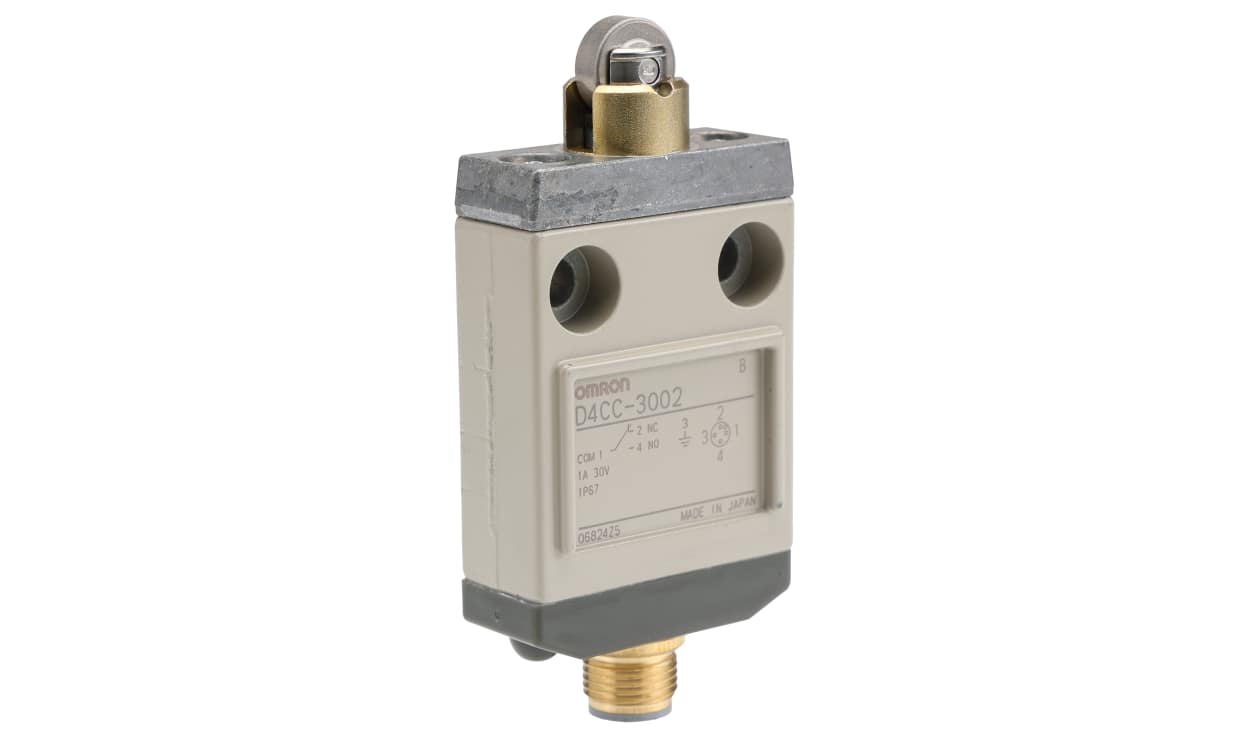

Omron D4CC-3002, Roller Plunger Limit Switch, NO/NC, IP67, SPDT, 1A Max

Name: Omron D4CC-3002, Roller Plunger Limit Switch, NO/NC, IP67, SPDT, 1A Max
Brand: OMRON
SKU: D4CC-3002
Availability: OutOfStock

Part Number : D4CC-3002

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Limit Switch, SPDT Configuration, Roller Plunger Actuator Type - D4CC-3002

This limit switch is designed for precision in automation, featuring a roller plunger actuator suitable for diverse applications. The robust metal housing provides durability while ensuring its performance in challenging environments. With an IP67 rating, this compact limit switch reliably operates within a temperature range of -10°C to +70°C.

Features & Benefits

• Compact 16mm design maximises space utilisation
• SPDT configuration ensures versatility in switching
• Mechanical life of 120 operations guarantees longevity
• Operating force of 11.77N allows for efficient actuation
• Dual normal state configuration supports NO and NC connections

Applications

• Utilised in robotic for accurate positioning
• Essential for conveyor systems to detect product placement
• Compatible with safety devices in industrial automation
• Used for monitoring in packaging machinery
• Suitable for use in outdoor installations due to robust design

What are the operational limits regarding current and voltage for this model?

This model supports a maximum current of 1A and operates effectively with a maximum DC voltage of 30V, making it suitable for various low-power control applications.

How does the product perform under extreme weather conditions?

The IP67 rating ensures that it is protected against water and dust ingress, allowing for reliable operation even in harsh outdoor or industrial environments.

What types of environments are ideal for deploying this device?

It is particularly effective in oily, cold, and outdoor environments thanks to its durable metal construction and triple-sealed design, ensuring a longer operational life.

How can I determine the appropriate actuator type for my application?

The actuator type should align with your specific application needs. For instance, the roller plunger is ideal for applications involving sliding mechanisms or push/pull operations.

Brand	Omron
Actuator Type	Roller Plunger
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	1A
Maximum DC Voltage	30V dc
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-10°C
Operating Force	11.77 N
Mechanical Life	120Operations
