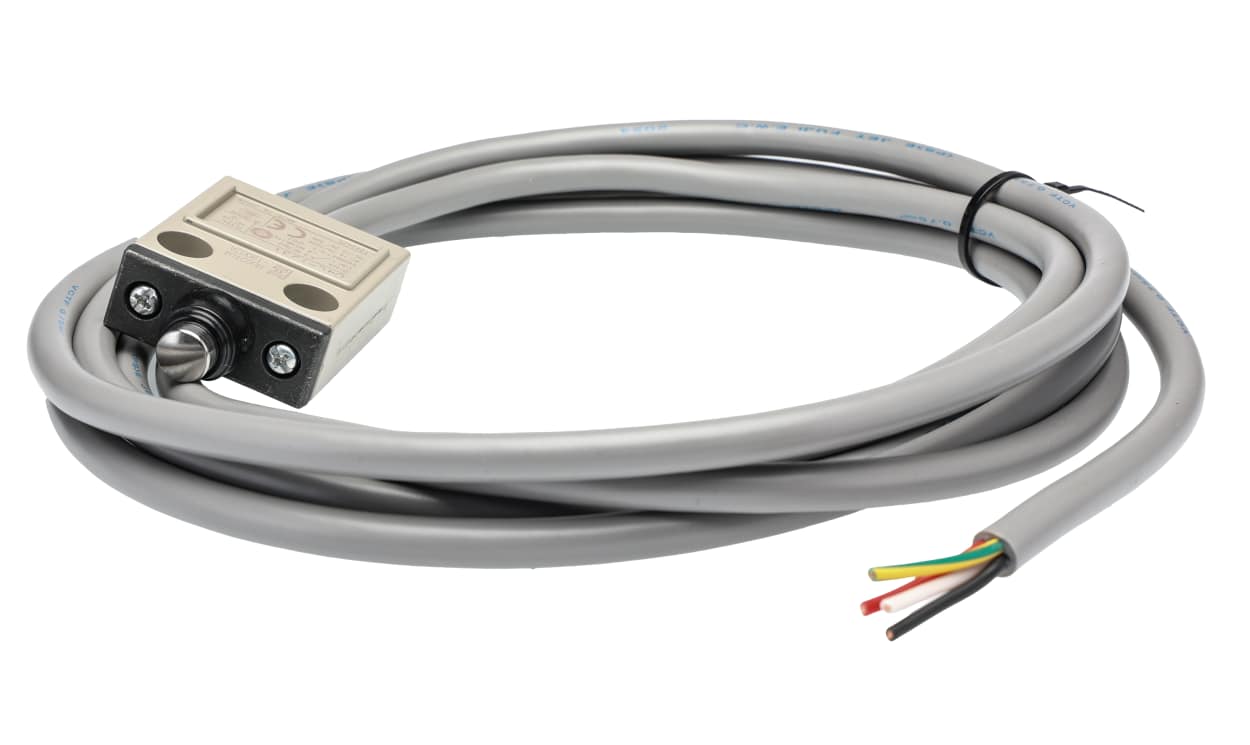

OMRON D4C-1231 | Sealed Pin Plunger Limit Switch | SPDT, 5 A, 3 m Cable
The OMRON D4C-1231 is a compact enclosed D4C series limit switch with a sealed pin plunger and SPDT snap-action NO/NC contacts. It handles 5 A at 250 V AC or 4 A at 30 V DC and has 3 m of VCTF oil-resistant cable.
- Sealed pin plunger
- 5 A 250 V AC, 4 A 30 V DC
- IP67
- 3 m VCTF oil-resistant cable
- -10 to +70 °C, 10,000,000 operations
- 49 x 40 x 16 mm, front mounting
- Detailed Description
- Specifications
- Features
- Downloads
Omron D4C Series Limit Switch, 49mm Length, SPDT Pole and Throw Configuration - D4C-1231
Features & Benefits
• High durability with a mechanical life of 10 million operations
• Snap action mechanism ensures quick response times
• M12 connection type allows for quick and secure installation
Applications
• Ideal for outdoor equipment exposed to harsh conditions
• Perfect for use in cold environments down to -10°C
• Suitable for requiring quick detection and feedback
• Effective in systems where oil resistance is necessary
What makes the switch suitable for harsh environments?
How do the plunger and action type enhance performance?
What current ratings does this switch support?
Can this switch be used in cold environments?
How does the M12 connection type benefit installation?
| Brand | Omron |
| Series | D4C |
| Actuator Type | Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 250 V ac 5 A, 30 V dc 4A |
| Maximum AC Voltage | 250V |
| Action Type | Snap Action |
| Length | 49 mm (1.93 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 16 mm (0.630 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Mechanical Life | 10000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Cable |
| Mounting Orientation | Front |
Compact enclosed limit switch, sealed pin plunger, 5 A 250 VAC, 4 A 30 VDC, 3m VCTF oil-resistant cable
