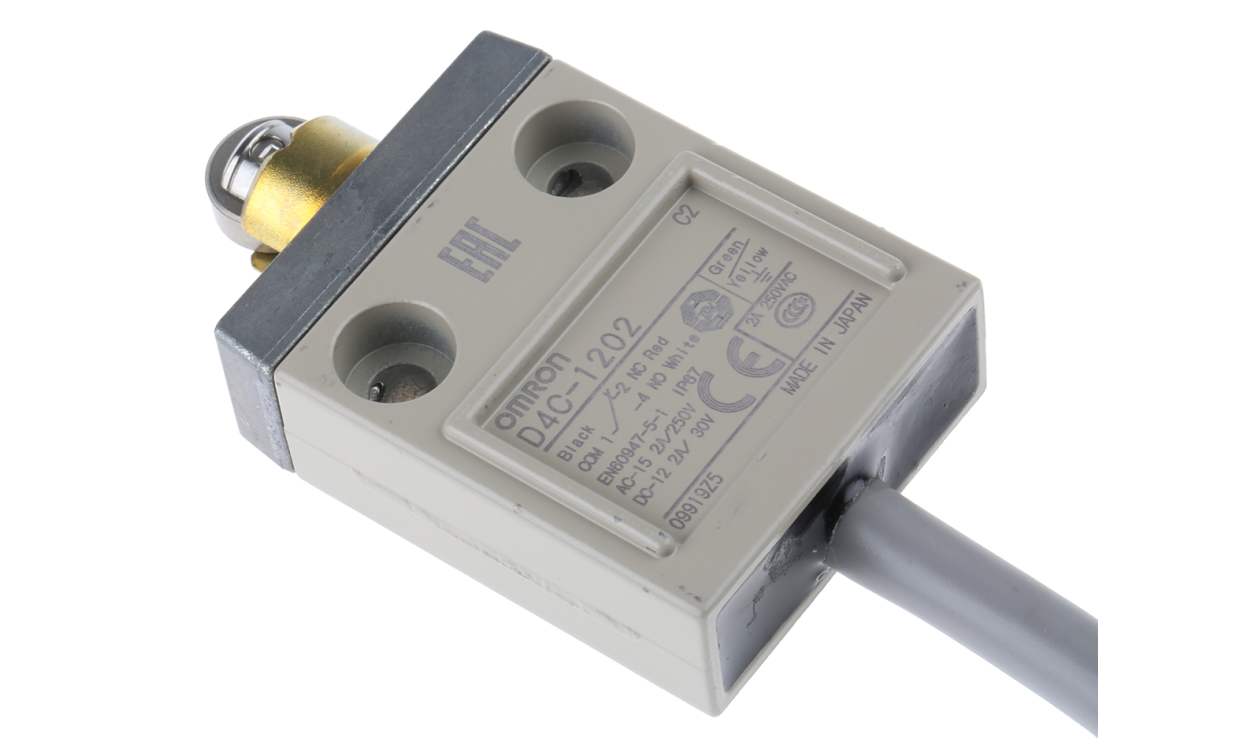

OMRON D4C-1202 | Roller Plunger Limit Switch | SPDT, AC 5 A / DC 4 A, Cable
The OMRON D4C-1202 is a D4C series roller plunger limit switch with SPDT snap-action contacts, rated 5 A AC and 4 A DC at 250 V AC or 30 V DC maximum. It has a cable connection and IP67 metal housing.
- Roller plunger, 11.77 N
- SPDT, NO/NC
- AC 5 A / DC 4 A
- IP67, metal, cable, CE
- -10 to +70 °C
- 51.5 x 40 x 16 mm, front mounting
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, Roller Plunger Actuator, 11.77 N Operating Force - D4C-1202
Features & Benefits
• SPDT configuration provides versatile switching capabilities
• Snap action design improves operational response time
Applications
• Suitable for safety interlocks in machinery
• Ideal for position sensing in transportation systems
• Utilised in conveyor systems for operational management
Can it operate effectively in extreme temperatures?
Is it compatible with both AC and DC circuits?
Can it handle high mechanical stress over time?
Is it easy to install in existing systems?
| Brand | Omron |
| Series | D4C |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | ac 5 A, dc 4A |
| Maximum AC Voltage | 250V |
| Action Type | Snap Action |
| Housing Material | Metal |
| Length | 51.5 mm (2.03 in) |
| Maximum Operating Temperature | +70 °C (158 °F) |
| Width | 40 mm (1.57 in) |
| Depth | 16 mm (0.630 in) |
| Minimum Operating Temperature | -10 °C (14 °F) |
| Maximum DC Voltage | 30V |
| Connection Type | Cable |
| Standards Met | CE |
| Mounting Orientation | Front |
| Operating Force | 11.77 N |
