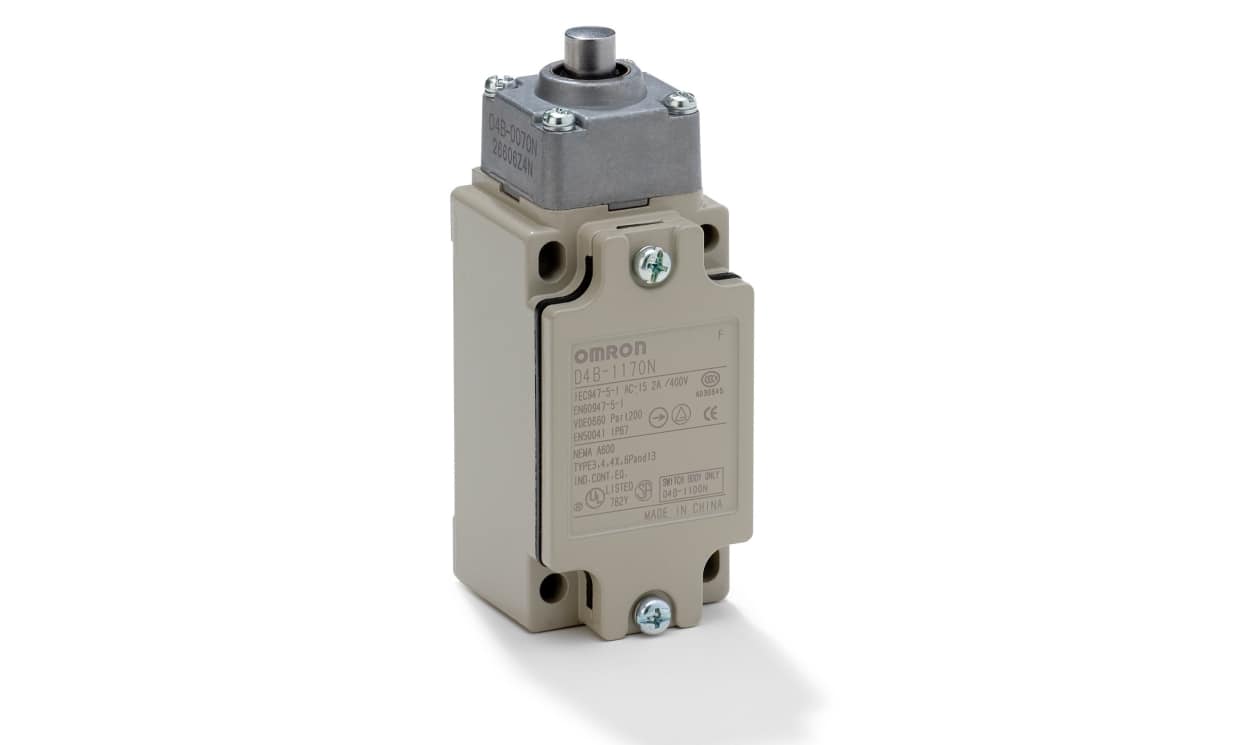

Omron D4B-4170N, Plunger Limit Switch, 1NC/1NO, IP67, SPST, Metal Housing, 400V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4B-4170N, Plunger Limit Switch, 1NC/1NO, IP67, SPST, Metal Housing, 400V ac Max, 10A Max

Name: Omron D4B-4170N, Plunger Limit Switch, 1NC/1NO, IP67, SPST, Metal Housing, 400V ac Max, 10A Max
Brand: OMRON
SKU: D4B-4170N
Availability: OutOfStock

Part Number : D4B-4170N

Safety Limit switch, D4B, M20, 1NC/1NO (snap-action), top plunger

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron Limit Switch, Plunger Actuator, IP67 - D4B-4170N

This limit switch is engineered for reliable performance in various automation and control applications. Featuring a robust metal housing and a plunger actuator, it is suitable for challenging operating environments. With the ability to handle up to 10A current and an IP67 protection rating, it meets the demands of industrial users effectively.

Features & Benefits

• Snap action mechanism ensures quick operation and responsiveness
• Direct opening mechanism enhances safety during faults
• Versatile operating temperature range from -40°C to 80°C
• Improved sealing properties protect against dust and water ingress
• Metal housing offers durability and resistance to mechanical stress

Applications

• Utilised with automated machinery for precise control
• Employed in material handling systems for dependable operations
• Suitable for safety interlocks in industrial environments
• Ideal for assembly lines requiring reliable switching

How does the direct opening mechanism improve safety?

It enables the separation of contacts during faults, reducing potential hazards.

What is the maximum voltage and current this switch can operate at?

It supports a maximum current of 10A and an operational voltage of up to 400V.

Can the operating direction be adjusted?

Yes, the operating direction can be modified easily without special tools.

How is the limit switch protected from environmental hazards?

Its IP67 rating provides protection against dust and water ingress.

Brand	Omron
Actuator Type	Plunger
Pole and Throw Configuration	SPST
Normal State Configuration	1NC/1NO
IP Rating	IP67
Maximum Current	10A
Housing Material	Metal
Maximum AC Voltage	400V
Action Type	Snap Action
Standards Met	CCC, CE, CSA, UL

Safety Limit switch, D4B, M20, 1NC/1NO (snap-action), top plunger

Omron D4B-4170N, Plunger Limit Switch, 1NC/1NO, IP67, SPST, Metal Housing, 400V ac Max, 10A Max

DOWNLOAD CATALOG

D4B-4170N Brochure - Safety Components A700000012099670
