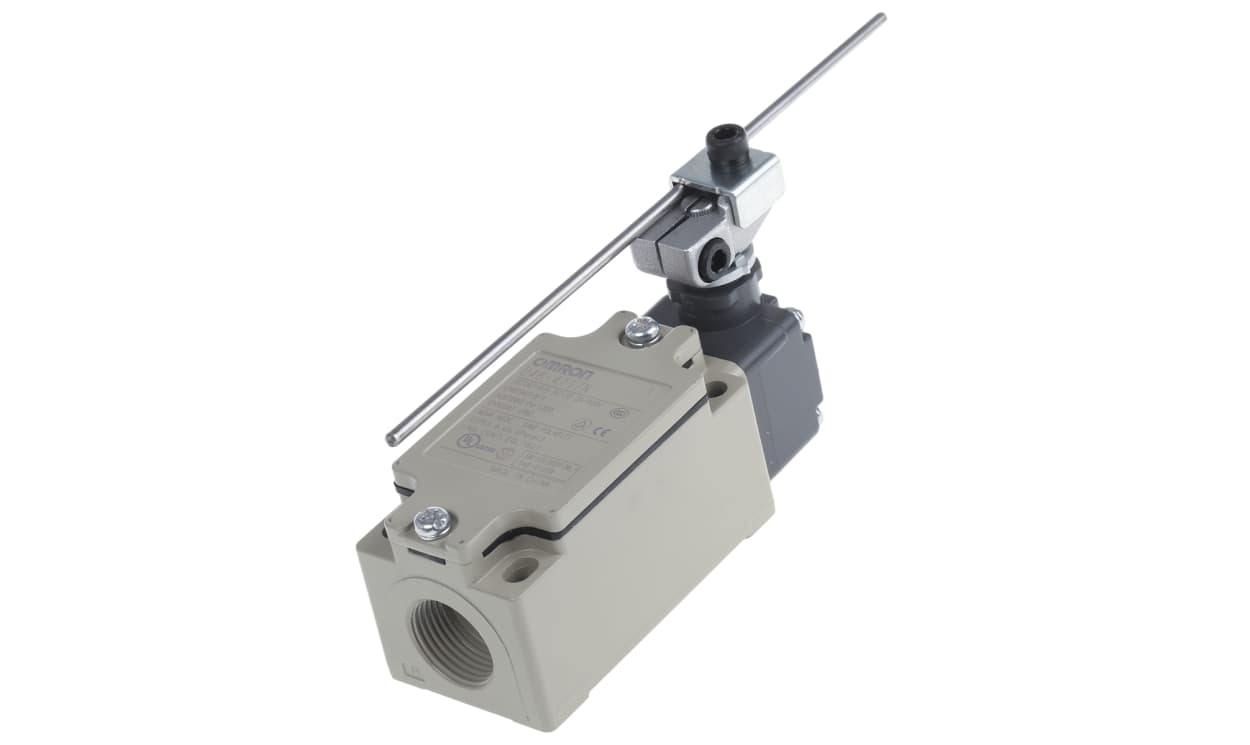

OMRON D4B-4117N | Safety Limit Switch | Adjustable Rod Lever, 1NC/1NO, M20
The OMRON D4B-4117N is a D4B-N series safety limit switch with an adjustable rod lever and 1NC/1NO snap-action contacts (DPST). It has an aluminium housing, M20 entry and a 2.12 N operating force. The OMRON datasheet gives the complete technical data for this part.
- Adjustable rod lever, 2.12 N
- 1NC/1NO, DPST
- Aluminium housing, M20
- CE
- -40 to +80 °C, 30,000,000 cycles
- 99.5 x 40 x 43 mm
- Detailed Description
- Specifications
- Features
- Downloads
Omron D4B-N Series Interlock Switch, 1NO, 1NC, Snap action Switch - D4B4117N
Features & Benefits
• Durable design supports up to 30 million mechanical cycles
• Snap-action contacts provide consistent switching performance
• M20 connection type ensures easy installation and compatibility
Applications
• Employed in automation and control systems
• Ideal for conveyor systems and material handling
• Utilised in robotic applications and automated production lines
• Suitable for environments requiring consistent switching mechanisms
Can it operate effectively in varying temperature conditions?
Is it compatible with automation systems that require a consistent switch?
Does it require specific wiring practices during installation?
| Brand | Omron |
| Series | D4B-N |
| Actuator Type | Rod |
| Pole and Throw Configuration | DPST |
| Normal State Configuration | 1NC/1NO |
| Action Type | Snap Action |
| Housing Material | Aluminium |
| Length | 99.5 mm (3.92 in) |
| Maximum Operating Temperature | '+80 °C |
| Width | 40 mm (1.57 in) |
| Depth | 43 mm (1.69 in) |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Mechanical Life | 30000000Cycles |
| Connection Type | M20 |
| Standards Met | CE |
| Operating Force | 2.12 N |
Safety Limit switch, D4B, M20, 1NC/1NO (snap-action), adjustable rod lever
