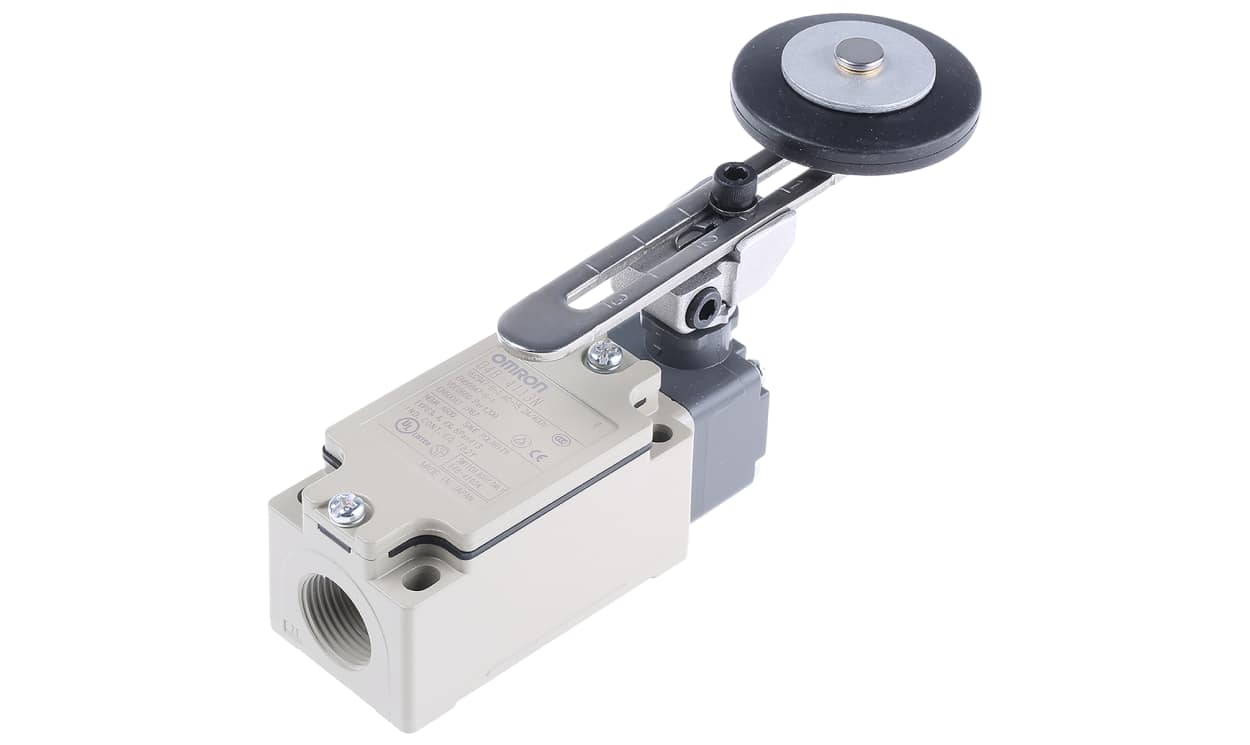

Name: Omron D4B-4113N, D4B-N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing, 400V ac Max, 20A Max
Brand: OMRON
SKU: D4B-4113N
Availability: OutOfStock

Omron D4B-4113N, D4B-N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing, 400V ac Max, 20A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4B-4113N, D4B-N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing, 400V ac Max, 20A Max

Part Number : D4B-4113N

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron D4B-N Series Limit Switch, 20A Maximum Current, IP67 - D4B-4113N

This limit switch is designed for diverse applications in the automation and electrical industries. Constructed from die-cast aluminium, the robust design ensures durability and longevity. The product measures 99.5mm in length, 40mm in width, and 56mm in depth, providing a compact yet efficient solution for operational needs. With an IP67 rating, it offers excellent protection against dust and water ingress.

Features & Benefits

• Capable of handling a maximum current of 20A for reliable operation
• Features a direct opening mechanism to enhance safety during faults
• Equipped with an adjustable roller lever for versatile installation
• High-temperature resistance with operating temperatures from -40°C to +80°C
• Conforms to CSA and UL certified standards for reliability
• Mechanical life of 30,000,000 operations ensures long-term usage

Applications

• Used for controlling machinery movements
• Ideal for automated systems in industrial environments
• Utilised in safety interlock systems for equipment
• Employed in conveyor systems for precise positioning
• Suitable for requiring high durability and reliability

What are the environmental conditions this limit switch can withstand?

The device operates effectively in extreme temperatures ranging from -40°C to +80°C, making it suitable for various environmental conditions. Its IP67 rating ensures protection against dust and immersion in water, enhancing its reliability in demanding settings.

How does the direct opening mechanism improve safety?

The direct opening mechanism is specifically designed to open the contacts during fault conditions, such as contact welding. This ensures that the switch will effectively disconnect the circuit, significantly reducing the risk of equipment damage or hazardous situations.

What types of wiring connections does this product support?

The limit switch features an M20 connection type, allowing for secure and standardised wiring options, which simplifies installation and maintenance, particularly in industrial setups.

How do the mechanical specifications contribute to performance?

With a mechanical life of 30,000,000 cycles, this switch is engineered for longevity, ensuring it maintains functionality even in high-frequency applications. This durability means reduced replacement costs and downtime, enhancing operational efficiency.

What makes the roller lever advantageous in this product?

The roller lever design allows for flexibility in operational direction and adjustment, which facilitates easier integration into various automated systems, leading to more precise control in machinery applications.

Brand	Omron
Actuator Type	Roller Lever
Pole and Throw Configuration	DPST
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	20A
Housing Material	Die Cast Aluminium
Maximum AC Voltage	400V
Connection Type	M20
Series	D4B-N
Action Type	Snap Action
Length	99.5mm
Width	40 mm
Maximum Operating Temperature	+80°C
Standards Met	CSA, UL
Depth	56mm
Minimum Operating Temperature	-40°C
Mechanical Life	30000000Cycles

Omron D4B-4113N, D4B-N Series Roller Lever Limit Switch, NO/NC, IP67, DPST, Die Cast Aluminium Housing, 400V ac Max, 20A Max

DOWNLOAD CATALOG

D4B-4113N Machine Guarding and Safety Range Overview 0900766b814522e8

D4B-4113N Omron Machine Safety 0900766b814c686b

D4B-4113N Selection Guide - Safety Components A700000014531817
