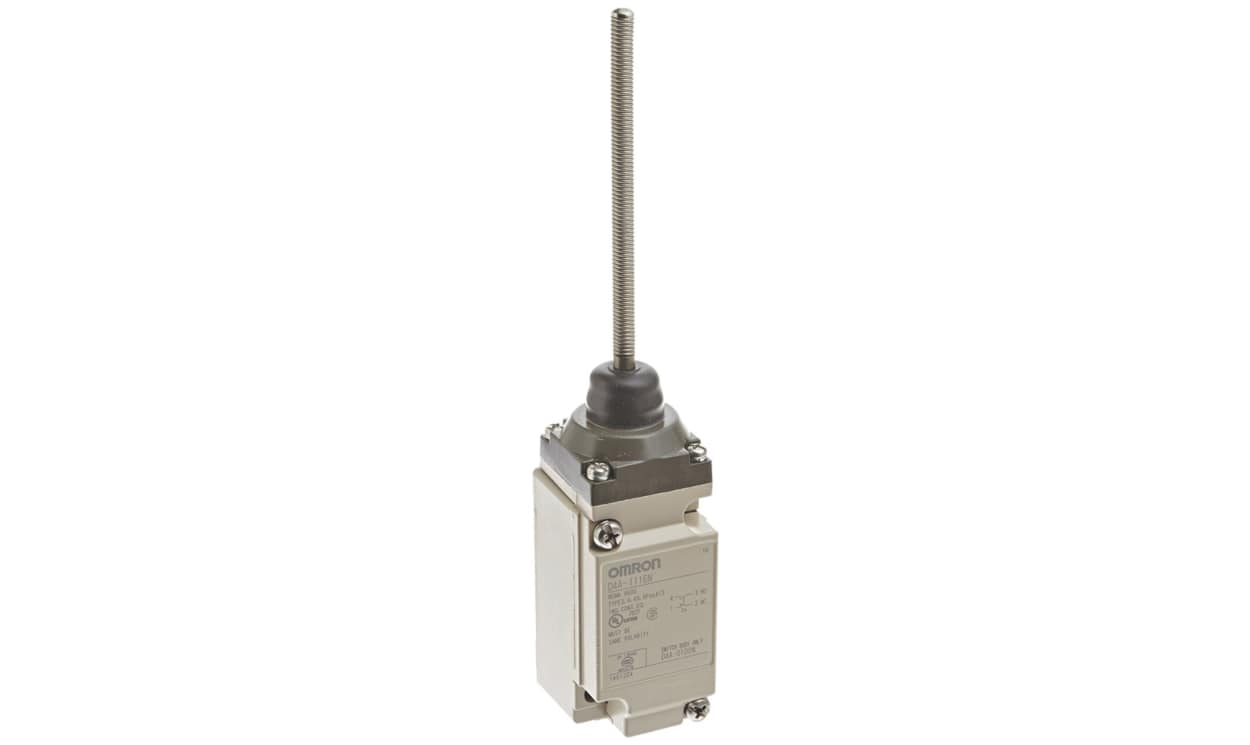

Name: Omron D4A-1116N, Coil Spring Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max
Brand: OMRON
SKU: D4A-1116N
Availability: OutOfStock

Omron D4A-1116N, Coil Spring Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D4A-1116N, Coil Spring Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max

Part Number : D4A-1116N

Availability: Sold out

Detailed Description
Specifications
Downloads

D4A- N General Purpose Limit Switch

A limit switch with better seal, shock resistance and strength

A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13)
Wide standard operating temperature range: -40 °C to +100 °C (standard type)
Models with fluoro-rubber available for greater resistance to chemicals
Block mounting method also reduces downtime for maintenance
DPDT, double-break models available for complex operations
Complete limit switch consists of several parts (receptacle, switch Box, head and lever) which must be ordered separately

Standards

UL, CSA and CCC

Brand	Omron
Actuator Type	Coil Spring
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP67
Maximum Current	10A
Maximum AC Voltage	600V
Maximum DC Voltage	250V
Connection Type	1/2 in NPT
Action Type	Snap Action
Length	75.5mm
Maximum Operating Temperature	+100°C
Minimum Operating Temperature	-20°C
Width	42mm
Depth	44mm
Mounting Orientation	Back, Front
Mechanical Life	50000000Operations

Omron D4A-1116N, Coil Spring Limit Switch, NO/NC, IP67, SPDT, 600V ac Max, 10A Max

DOWNLOAD CATALOG
