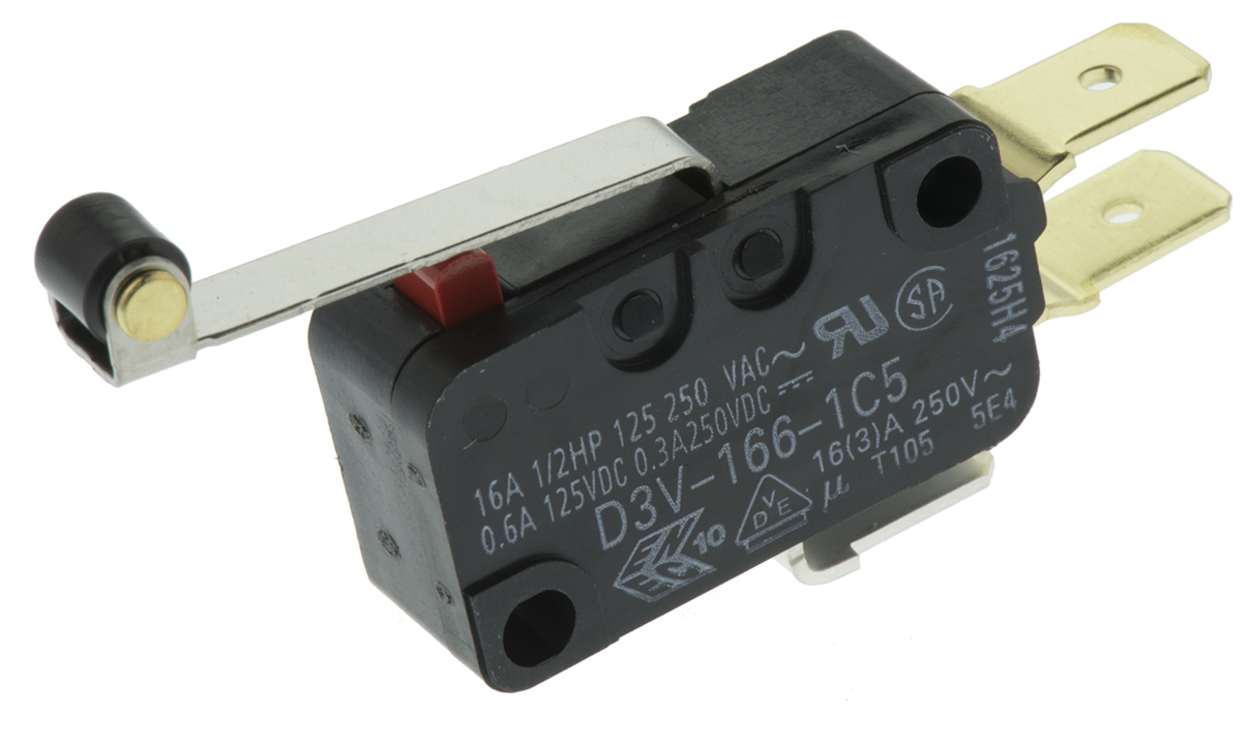

OMRON D3V-166-1C5 | Roller Lever Micro Switch | 16 A @ 250 V ac, SP-CO, Tab Terminal
Built around a roller lever actuator, the OMRON D3V-166-1C5 is an SP-CO micro switch with tab terminals and a 16 A at 250 V ac rating. This roller lever version is rated for ambient temperatures of -25 to +105 °C. OMRON gives the D3V-166-1C5 a mechanical life of 10 million operations.
- Contact configuration: SP-CO (single-pole changeover)
- Contacts made of silver alloy
- Protection class IP40
- Contact rating: 16 A at 250 V ac
- Terminal type: tab
- Detailed Description
- Specifications
- Downloads
Omron Miniature
16A contact switching
Various lever styles available
| Brand | Omron |
| Actuator Type | Roller Lever |
| Terminal Type | Tab |
| Contact Configuration | SP-CO |
| IP Rating | IP40 |
| Contact Current Rating | 16 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +105 °C (221 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -25 → +105 °C (-13 to 221 °F) |
