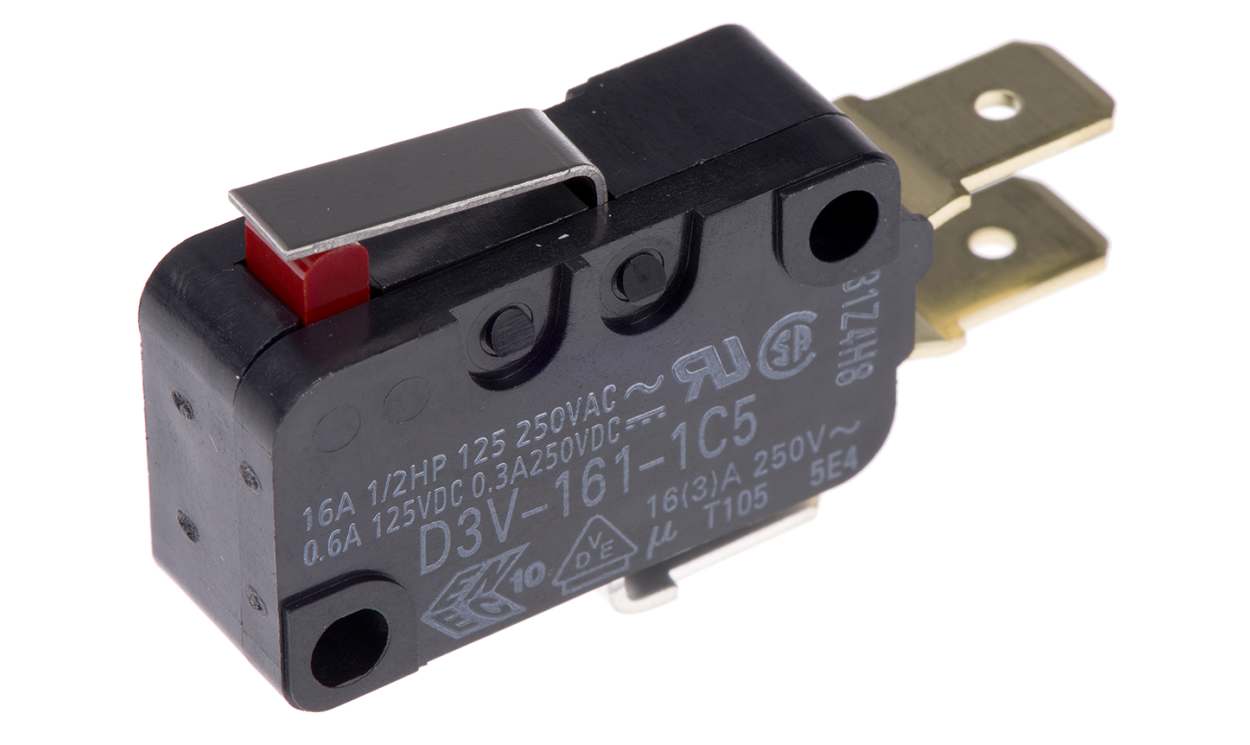

OMRON D3V-161-1C5 | Short Hinge Lever Micro Switch | 16 A @ 250 V ac, SPDT, Tab Terminal
The OMRON D3V-161-1C5 is a short hinge lever micro switch rated 16 A at 250 V ac, fitted with tab terminals and SPDT contacts. This short hinge lever model is specified for 10 million operations of mechanical life. This short hinge lever version is rated for ambient temperatures of -25 to +105 °C.
- Contact configuration: SPDT (single-pole double-throw)
- Contact material: silver alloy
- Ingress protection: IP40
- Contact rating: 16 A at 250 V ac
- Terminal type: tab
- Detailed Description
- Specifications
- Downloads
Omron Miniature
16A contact switching
Various lever styles available
| Brand | Omron |
| Actuator Type | Short Hinge Lever |
| Terminal Type | Tab |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 16 A @ 250 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +105 °C (221 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 10000000Operations |
| Operating Temperature Range | -25 → +105 °C (-13 to 221 °F) |
