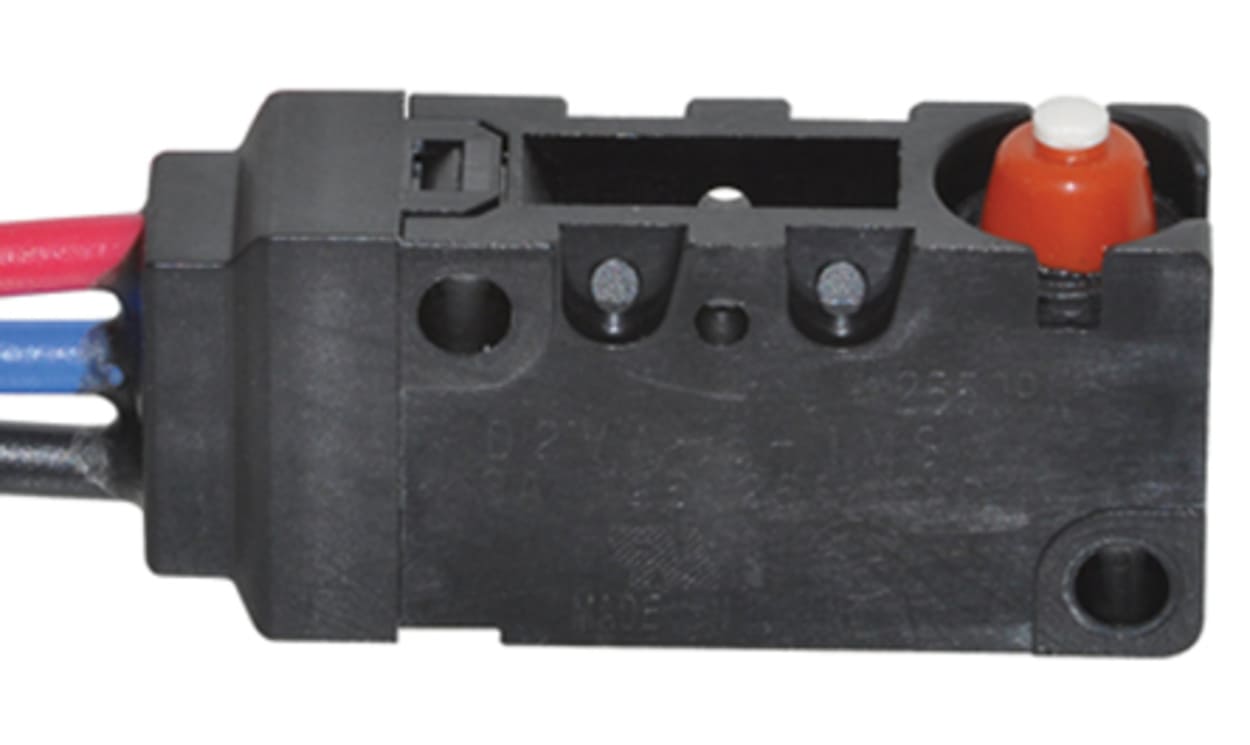

Omron D2VW-5-1MS, Pin Plunger Micro Switch, Wire Lead Terminal, 3 A @ 125 V ac, SP-CO, IP67

Name: Omron D2VW-5-1MS, Pin Plunger Micro Switch, Wire Lead Terminal, 3 A @ 125 V ac, SP-CO, IP67
Brand: OMRON
SKU: D2VW-5-1MS
Availability: OutOfStock

Part Number : D2VW-5-1MS

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Subminiature Sealed (5 A)

Sealed V3 style microswitch conforming to EN61058-1

Sealed to IEC IP50 (solder terminal type)
Sealed to IEC IP67 (wire lead type)
RoHS compliant
Switches up to 5A @ 250Vac
Contact configuration: SPDT

Approvals

UL, CSA, VDE

Brand	Omron
Actuator Type	Pin Plunger
Terminal Type	Wire Lead
Contact Current Rating	3 A @ 125 V ac
Contact Configuration	SP-CO
IP Rating	IP67
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Switch Housing	D2 Housing
Contact Material	Silver Alloy
Mechanical Life	10000000Operations
Operating Temperature Range	-40 → +85°C

Omron D2VW-5-1MS, Pin Plunger Micro Switch, Wire Lead Terminal, 3 A @ 125 V ac, SP-CO, IP67
