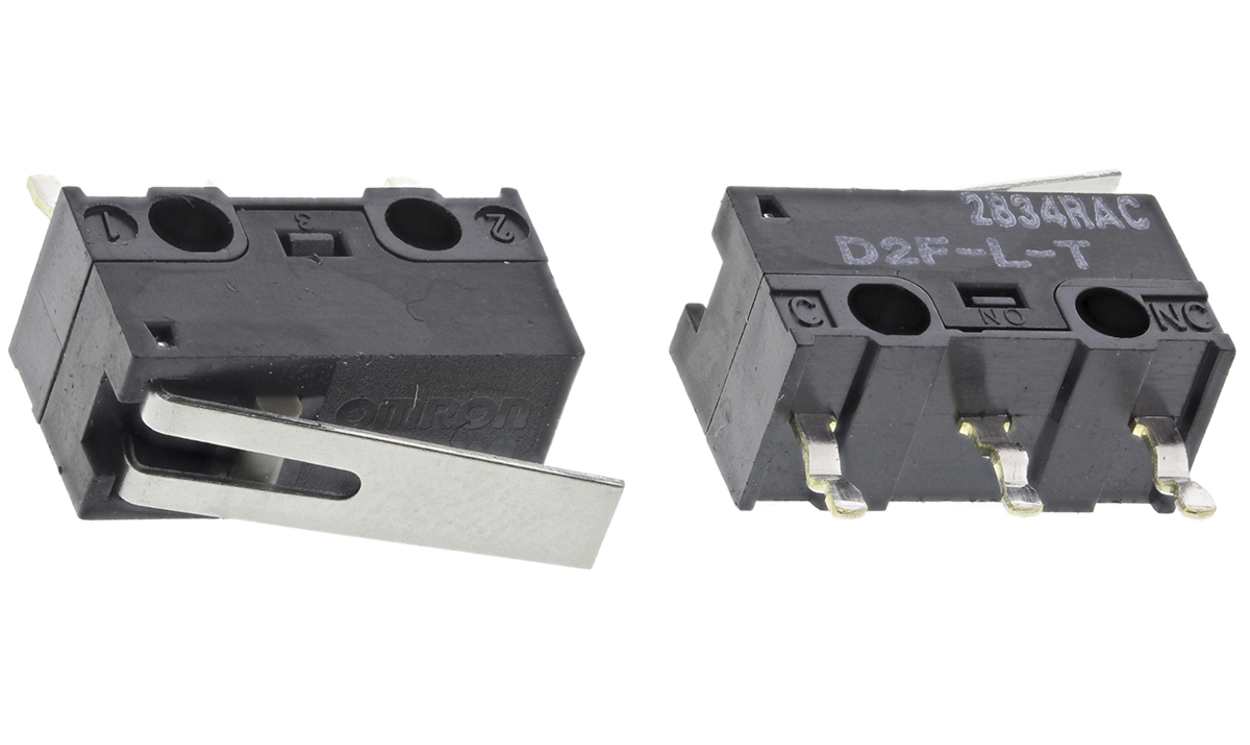

Name: Omron D2F-L-T, Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT, IP40
Brand: OMRON
SKU: D2F-L-T
Availability: OutOfStock

Omron D2F-L-T, Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT, IP40

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron D2F-L-T, Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT, IP40

Part Number : D2F-L-T

Availability: Sold out

Detailed Description
Specifications
Downloads

Ultra Sub-Miniature Micro-switch

Snap action sub-miniature microswitch ideal for home appliances, audio equipment and communications equipment.

RoHS compliant
Contact rating: 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts
SPDT contact configuration
Snap action

Approvals: UL & CSA

Brand	Omron
Actuator Type	Hinge Lever
Terminal Type	PCB
Contact Current Rating	3 A @ 125 V ac
Contact Configuration	SPDT
IP Rating	IP40
Operating Force	0.78 N
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+65°C
Contact Material	Silver Alloy
Mechanical Life	1000000Operations
Release Force	0.05N
Operating Temperature Range	-25 → +65°C

Omron D2F-L-T, Hinge Lever Micro Switch, PCB Terminal, 3 A @ 125 V ac, SPDT, IP40

DOWNLOAD CATALOG
