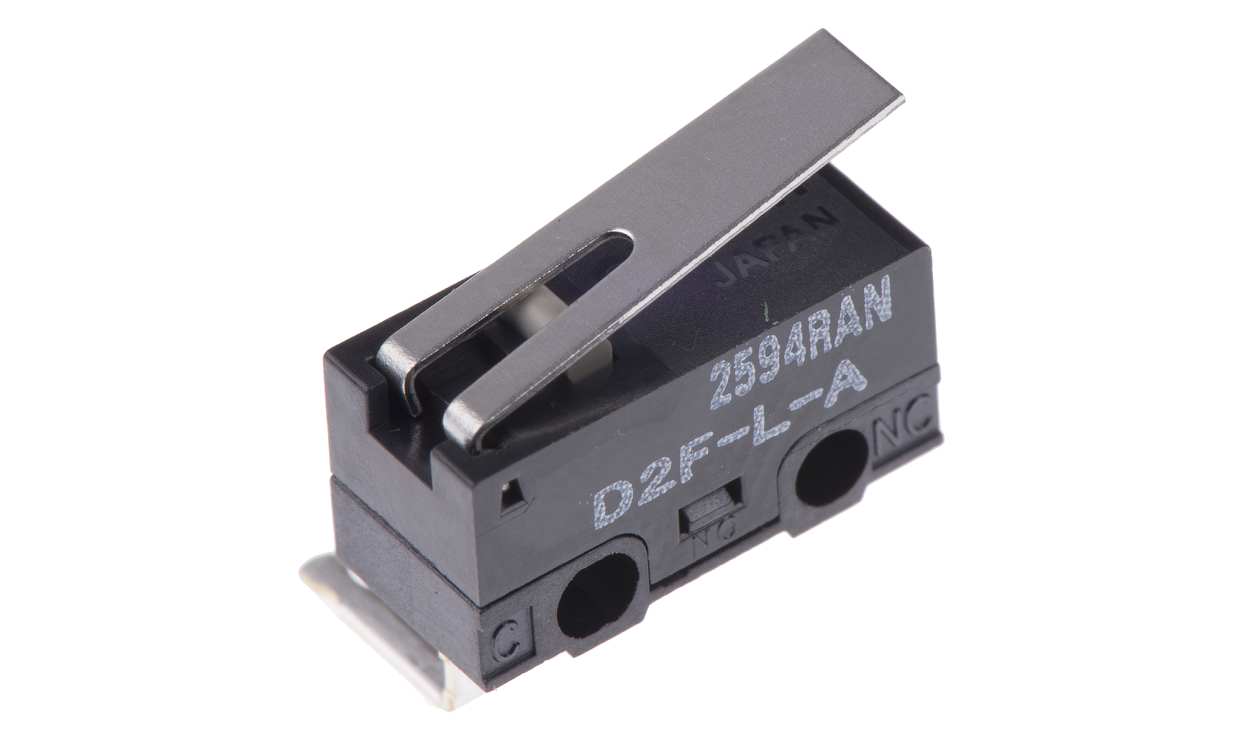

OMRON D2F-L-A | Hinge Lever Micro Switch | Right Angle PCB Terminal, 3 A @ 125 V ac, SPDT
The OMRON D2F-L-A is a micro switch, operated by a hinge lever actuator and connected through right angle PCB terminals. The part is specified with a contact rating of 3 A at 125 V AC, SPDT contacts and IP40 protection.
- Contact current rating: 3 A at 125 V AC
- Contact configuration: SPDT
- Operating force 0.78 N, release force 0.05 N
- Operating temperature: -25 to +65 °C
- Contact material: Silver Alloy
- Mechanical life: 1,000,000 operations
- Detailed Description
- Specifications
- Downloads
D2F Series Ultra-Subminiature Microswitches
Incorporate a mechanism made with two highly precise split springs to ensure long service life (1,000,000 operations).
Insertion moulded terminals prevent flux penetration during soldering.
Ideal for use in household appliances, office machines, telecommunications and audio equipment, etc.
| Brand | Omron |
| Actuator Type | Hinge Lever |
| Terminal Type | Right Angle PCB |
| Contact Configuration | SPDT |
| IP Rating | IP40 |
| Contact Current Rating | 3 A @ 125 V ac |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Maximum Operating Temperature | +65 °C (149 °F) |
| Contact Material | Silver Alloy |
| Mechanical Life | 1000000Operations |
| Operating Temperature Range | -25 → +65 °C (-13 to 149 °F) |
| Operating Force | 0.78 N |
| Release Force | 0.05N |
