Omron CP1L-M30DT1-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 18 (DC)-Input, DC Input

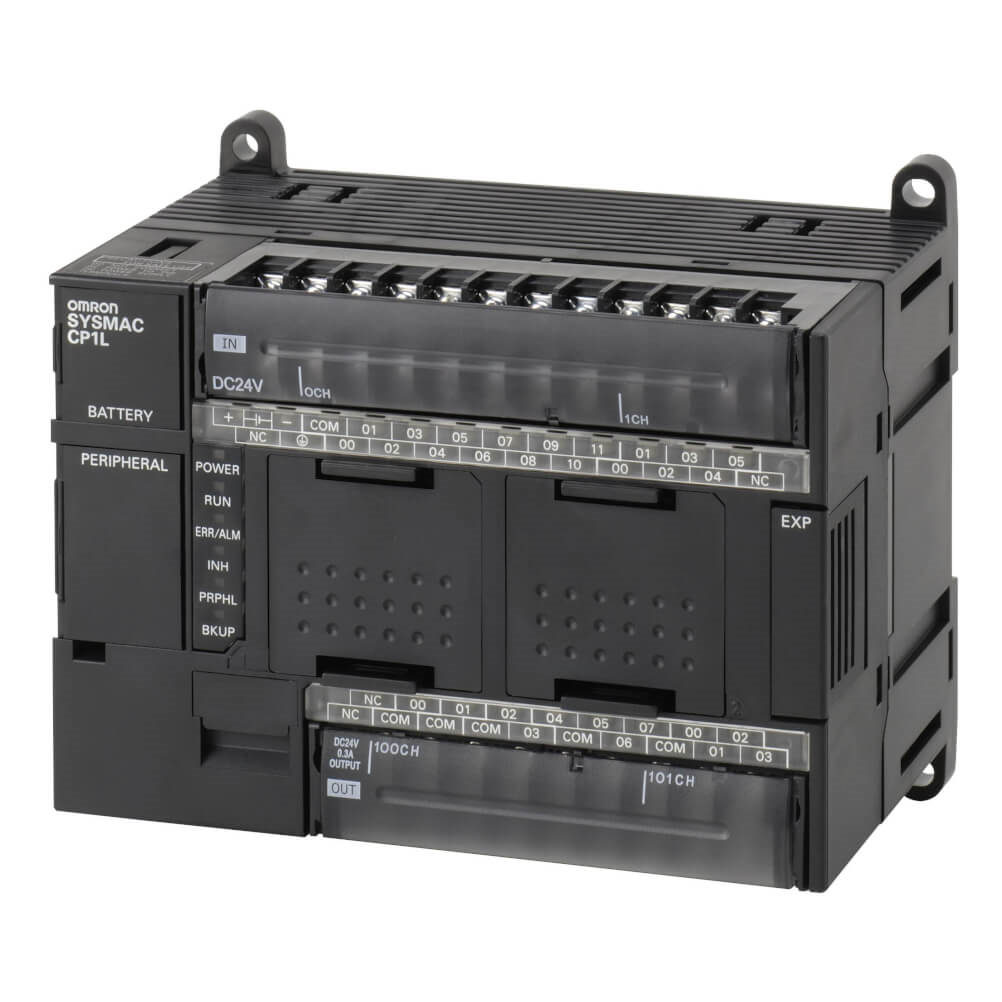

Name: Omron CP1L-M30DT1-D, CP1L Series PLC CPU for Use with SYSMAC CP1L Series, Transistor Output, 18 (DC)-Input, DC Input
Brand: OMRON
SKU: CP1L-M30DT1-D
Availability: OutOfStock

Part Number : CP1L-M30DT1-D

PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 10K steps program + 32K words data memory

Availability: Sold out

Detailed Description
Specifications
Features

Omron CP1L Series PLC CPU, For Use With SYSMAC CP1L Series, DIN Rail Mount - CP1L-M30DT1-D

This PLC CPU is crafted for efficient control in industrial automation applications. It offers robust performance and the ability to manage a broad spectrum of inputs and outputs, enhancing process efficiency. With advanced communication capabilities, it provides connectivity and compatibility across different automation environments, making it an essential choice for professionals in the electronics and mechanical sectors.

Features & Benefits

• Supports 18 DC inputs for versatile sensor integration
• Features 12 transistor outputs for effective signal control
• USB communication enables easy data transfer
• Programmable using Ladder Logic for straightforward operation
• Extensive memory capacity accommodates complex tasks
• Designed for DIN rail mounting, simplifying installation

Applications

• Utilised with SYSMAC CP1L series for improved automation
• Employed in machine control systems for streamlined processes
• Applied in production lines where input/output management is vital
• Used in test equipment for accurate data handling

What type of programming language is used for your application?

Ladder Logic is used for programming, providing a user-friendly interface.

Can it operate in varying temperature ranges?

Yes, it operates effectively in temperatures from 0 to +55°C.

How does it connect to other devices?

It connects through a USB communication port, allowing for easy integration.

What is the maximum programme capacity for tasks?

It supports up to 10,000 steps in its programming memory.

Is there a battery backup feature?

Yes, it includes a battery backup to maintain operation during power interruptions.

Standards

UC1, N, L, CE

Omron CP1L CPU's, Expansion Modules and Accessories

Omron's CP1L series offers the compactness of a micro-PLC with the capability of a modular PLC. The range is not only compact, it is scaleable too, and has a faster processing speed than other controllers.

Brand	Omron
Manufacturer Series	CP1L
Number of Inputs	18 (DC)
Output Type	Transistor
For Use With	SYSMAC CP1L Series
Input Type	DC
Number of Outputs	12 (Transistor)
Voltage Category	20.4 → 26.4 V dc
Network Type	USB
Number of Digital Outputs	12
Dimensions	130 x 110 x 85 mm
Mounting Type	DIN Rail
Programming Language Used	Ladder Logic
Length	130mm
Program Capacity	10000 Steps
Depth	85mm
Maximum Operating Temperature	+55°C
Number of Communication Ports	1
Memory	10000 (Program Memory) Steps, 32000 (Data Memory) Words
Programming Interface	Computer

PLC, 24 VDC supply, 18 x 24 VDC inputs, 12 x PNP outputs 0.3 A, 10K steps program + 32K words data memory
