OMRON CP1E-NA20DT1-D | CP1E Series PLC CPU | 8 Transistor Outputs, 20.4 to 26.4 V DC

Name: OMRON CP1E-NA20DT1-D | CP1E Series PLC CPU | 8 Transistor Outputs, 20.4 to 26.4 V DC
Brand: OMRON
SKU: CP1E-NA20DT1-D
Availability: OutOfStock

Part Number : CP1E-NA20DT1-D

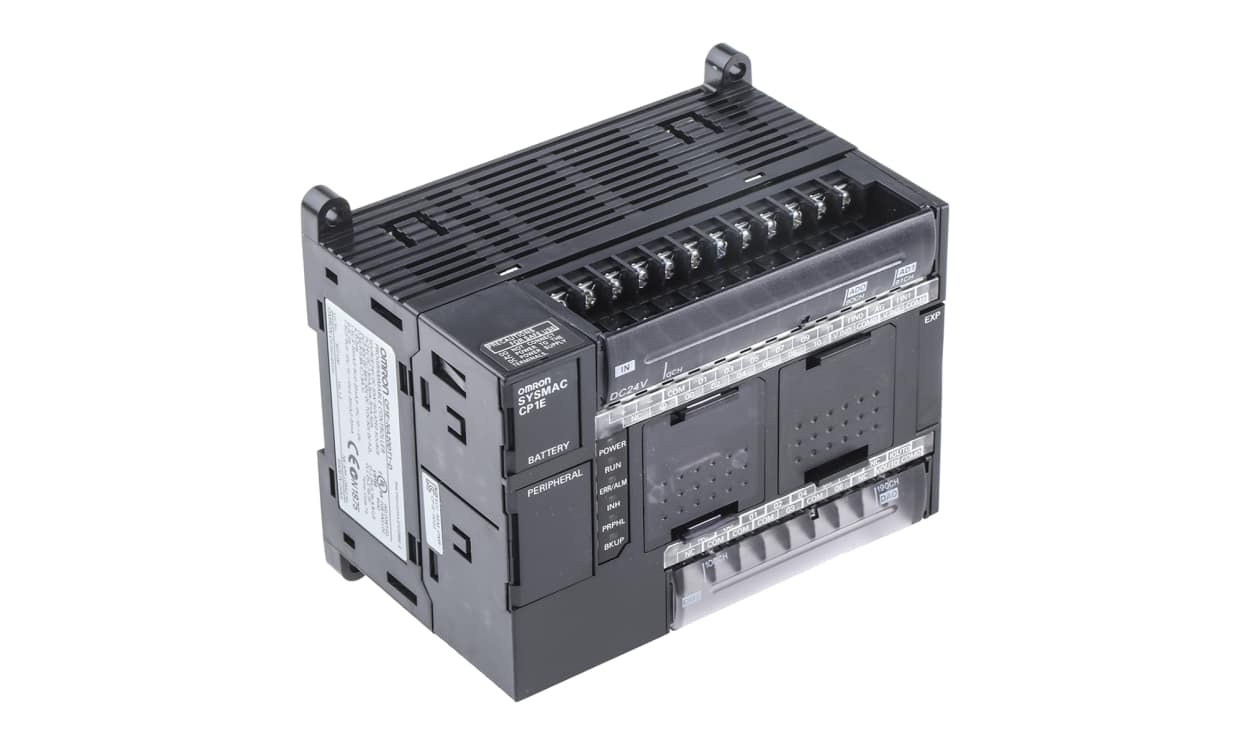

The OMRON CP1E-NA20DT1-D is a DIN-rail CP1E PLC CPU with 8 transistor outputs, analogue and pulse input capability and a 20.4 to 26.4 V DC supply range. Program memory is listed as 32 kB with 8000 words of data memory.

Outputs: 8 transistor
Input type: analogue, pulse
Voltage: 20.4 to 26.4 V DC
Memory: 32 kB program, 8000 words data
Dimensions: 86 x 110 x 85 mm, DIN rail
Operating temperature: 0 to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

CP1E-E and CPE-N CPU

The E-type Basic CPU Units provide cost performance and easy application with only basic functionality.The N and NA-types Application CPU Units support Programmable Terminal connection, position control, and inverter connection.,CP1E-E : low-cost, ladder-only programming, ideal for simple, standalone applications.,CP1E-N : built-in RS232 comms with further expansion possible, large memory, high-speed pulse I/O functionality.,Expansions modules from the CP1L are compatible with the CP1E-E and CPE-N CPU.

Programming, setting, and monitoring with CX-Programmer
Easy connection with computers using commercially available USB cables
With E30/40, N30/40/60 or NA20 CPU Units, Add I/O by Connecting Expansion I/O Units
With E30/40, N30/40/60 or NA20 CPU Units, Add Analog I/O or Temperature Inputs by Connecting Expansion Units
Quick-response inputs
Input interrupts
Complete High-speed Counter Functionality
Versatile pulse control for Transistor Output for N14/20/30/40/60 or NA20 CPU Units
PWM Outputs for Transistor Output for N14/20/30/40/60 or NA20 CPU Units
Built-in RS-232C Port for N/NA-type CPU Units
Mounting Serial Option Boards to N30/40/60 or NA20 CPU Units
Built-in analog I/O, two inputs and one output, for NA-type CPU Units
For N/NA-type CP1E CPU Units: Mount a Battery to an N/NA-type CPU Unit if the data in certain areas must be backed up for power interruptions

Omron CP1E CPU and Accessories

The E-type Basic CPU Units provide cost performance and easy application with only basic functionality.

Brand	Omron
Manufacturer Series	CP1E
Number of Inputs	12 (Analogue)
Output Type	Transistor
For Use With	CP1E Series
Input Type	Analogue, Pulse
Voltage Category	20.4 → 26.4 V dc
Number of Outputs	8 (Transistor)
Network Type	USB
Minimum Operating Temperature	0°C
Memory	32 (Program Memory) kB, 8000 (Data Memory) Words
Programming Interface	Computer
Width	110mm
Mounting Type	DIN Rail
Maximum Operating Temperature	+55°C
Dimensions	86 x 110 x 85 mm
Length	86mm
Number of Communication Ports	2
Programming Language Used	Ladder Logic
Depth	85mm
