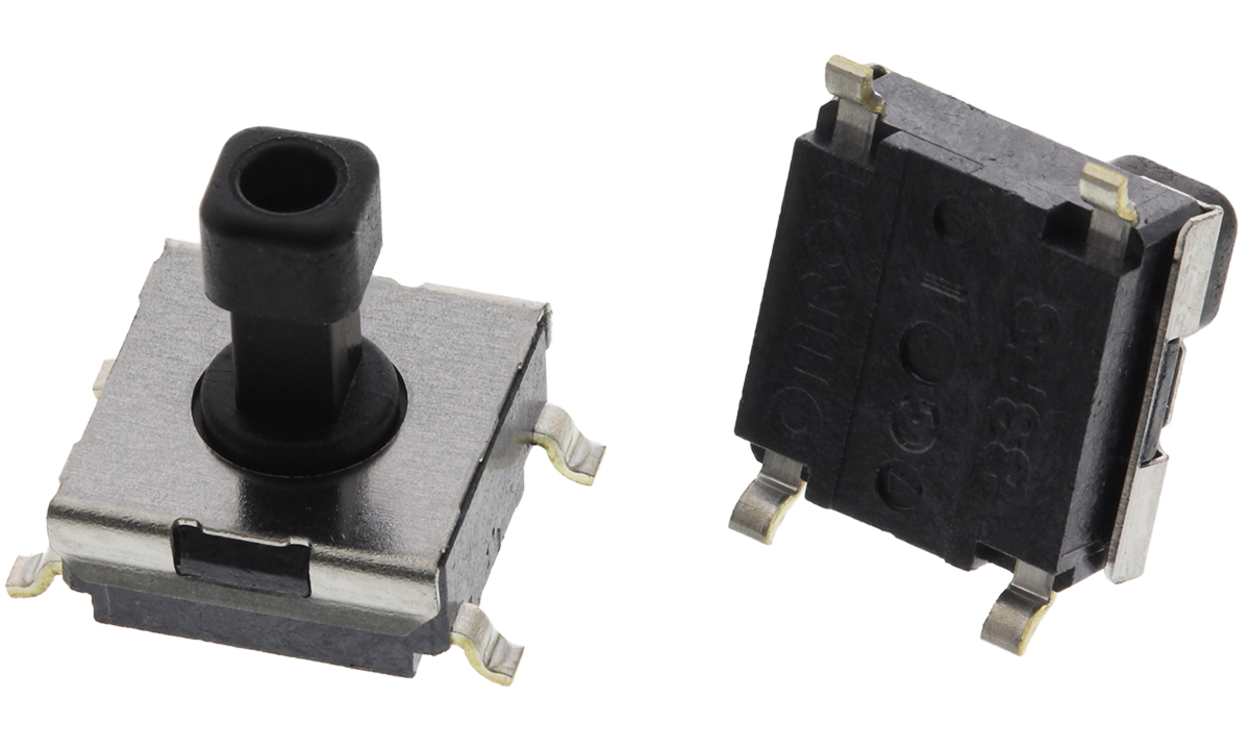

Omron B3FS-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 4.7mm Through Hole

Name: Omron B3FS-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 4.7mm Through Hole
Brand: OMRON
SKU: B3FS-1050
Availability: OutOfStock

Part Number : B3FS-1050

Availability: Sold out

Detailed Description
Specifications
Downloads

Tactile Switches Omron B3FS

Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators

Positive click action plus a long life equal to that of a no-contact switch.

Note

Manufacturers part numbers with the P suffix are supplied on tape reel or strip and part numbers without the P suffix are bag quantity

Tactile

Brand	Omron
Contact Configuration	SPST
Terminal Type	Surface Mount
Actuator Length	4.7mm
Actuator Type	Plunger
Length	6.3mm
Width	6mm
Dimensions	6.3 x 6 x 7.3mm
Mounting Type	Through Hole
Contact Current Rating	50 mA @ 24 V dc
Operating Force	0.98 N
Height	7.3mm
Contact Material	Silver Plated
Minimum Operating Temperature	-25°C
Operating Temperature Range	-25 → +70°C
Mechanical Life	1000000Operations
Maximum Operating Temperature	+70°C

Omron B3FS-1050, Plunger Tactile Switch, SPST 50 mA @ 24 V dc 4.7mm Through Hole

DOWNLOAD CATALOG

B3FS-1050 Datasheet 0900766b813ecc24
