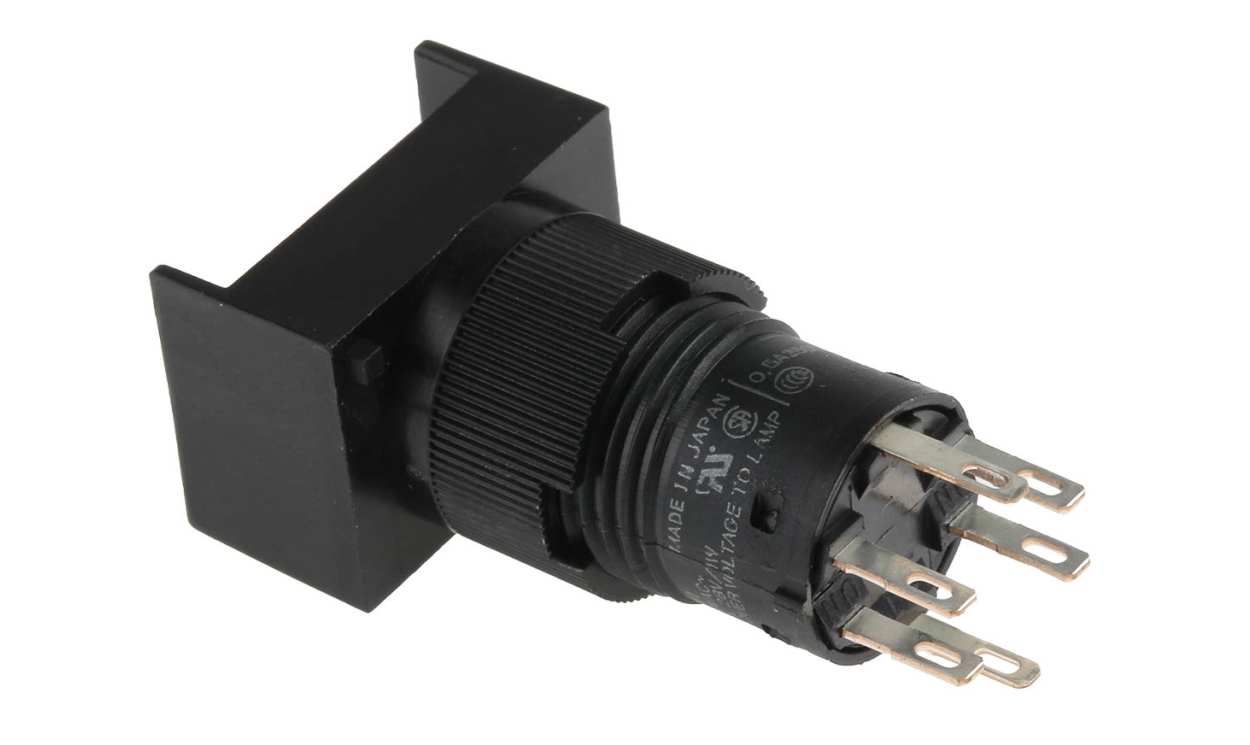

Omron A3CJ-7011, A3C Series Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40

Name: Omron A3CJ-7011, A3C Series Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40
Brand: OMRON
SKU: A3CJ-7011
Availability: OutOfStock

Part Number : A3CJ-7011

Availability: Sold out

Detailed Description
Specifications
Downloads

Panel Mounting Illuminated Switches and Indicators

Each switch has two sets of SPST contacts, one normally open and one normally closed, permitting a wide variety of switching functions to be carried out
A complete assembly requires a switch unit (or indicator), a lens and a lamp, each of which must be ordered separately
The lenses contain a removable legend plate, which may be marked by the user
Lamps can be changed from front of panel
Matching indicators

Approvals

UL, CSA

OMRON Push Button Switch, Rectangular Style, 500mA Contact Current Rating - A3C Series - A3CJ-7011

Want a way to briefly make or break a circuit? Add this OMRON push button switch to your setup. It's designed to pair with any rectangular LED or non-lighted button from the A3C range (such as 198-618) to create a complete assembly. The unit's momentary operation style is ideal for equipment that requires manual operation, such as switching on a water pump or activating a measuring device. To use it, simply push the attached button by hand to immediately change the state of your circuitry. This product's solder termination method achieves a strong and permanent fix to give you stable performance, even in high-vibration applications.

Features & Benefits

• Slots into a standard 12mm cut-out, so takes up minimal space on your control panel
• IP40 rating means it's protected against wires and small tools greater than 1mm in diameter
• 250V AC voltage rating suits UK mains electricity supplies

Applications

• Industrial automation
• Telecommunications systems
• Automotive manufacturing

What contact configuration does this unit have?

This push button switch has an SPST contact configuration, so it provides straightforward on-off control.

Approvals

UL; CSA

Brand	Omron
Switch Operation	Momentary
Illuminated	Yes
Series	A3C
Panel Cut Out Diameter	12mm
Mounting Type	Panel Mount
Contact Configuration	SPST
Voltage Rating	250V ac
Push Button Style	Rectangular
IP Rating	IP40
Contact Current Rating	500 mA @ 250 V ac
Manufacturer Part No.	A3CJ-7011
Panel Cut Out Width	18mm
Panel Cut Out Height	14mm
Operating Temperature Range	-10 → +55°C
Maximum Operating Temperature	+55°C
Terminal Type	Solder
Minimum Operating Temperature	-10°C

Omron A3CJ-7011, A3C Series Illuminated Push Button Switch, Momentary, Panel Mount, 12mm Cutout, SPST, 250V ac, IP40

DOWNLOAD CATALOG

A3CJ-7011 WEEE RoHS 0900766b80e4fb91
