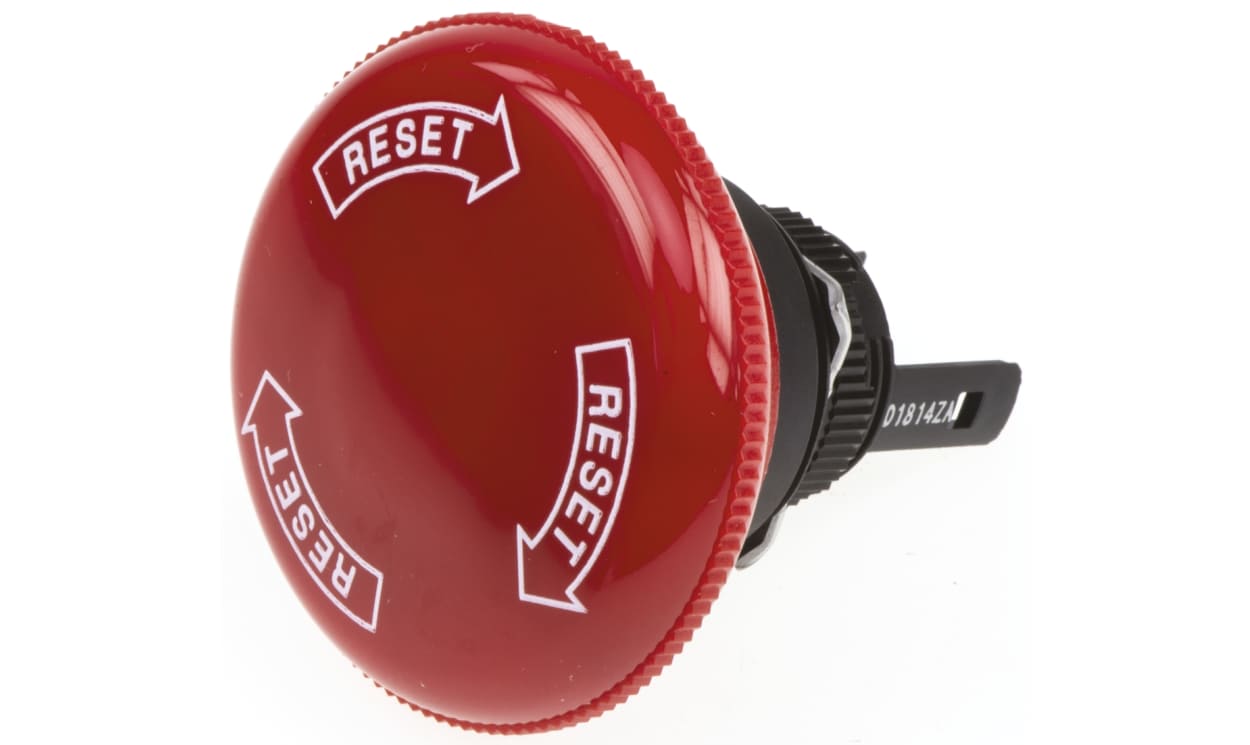

OMRON A165E-M-02 | A165E Emergency Stop Push Button | DPST, Latching, IP65

Name: OMRON A165E-M-02 | A165E Emergency Stop Push Button | DPST, Latching, IP65
Brand: OMRON
SKU: A165E-M-02
Availability: OutOfStock

Part Number : A165E-M-02

Offering DPST contacts and latching operation, Part A165E-M-02 from OMRON is a non-illuminated A165E series emergency stop push button. For mounting, the unlit DPST A165E unit has IP65 protection. The A165E-M-02 is specified with a 30 V DC, 250 V AC voltage rating and a supply current of 3 A.

DPST contact block
Operation: latching
IP65 rating
Non-illuminated
Voltage rating 30 V DC, 250 V AC
Supply current 3 A

Availability: in stock

Detailed Description
Specifications
Downloads

Omron A165E Series Emergency Stop Push Button, 250V Voltage Rating, DPST Contact Configuration - A165EM02

This emergency stop push button is designed for high-performance safety applications. As a latching push button switch, it features a contact configuration of DPST, making it suitable for robust industrial environments. The product operates under a voltage rating of 250V and is characterised by its IP65 rating, ensuring protection against dust and water ingress.

Features & Benefits

• Modular construction enables easy installation and wiring
• Direct opening mechanism allows minimum contact separation of 3mm
• Safety lock feature prevents accidental operation
• Quick assembly via snap-in design enhances user efficiency
• Suitable for a variety of environments with operating temperatures from -10°C to 55°C

Applications

• Used for emergency shutdowns in machinery and equipment
• Ideal for control panels in automation systems
• Applied in electrical safety systems across various industrial plants
• Effective in environments requiring stringent safety protocols

What is the maximum current rating for this switch?

The switch is rated for a maximum steady current of 3A at 250V AC and 30V DC, ensuring it can handle significant loads in industrial applications.

How does the safety lock feature function?

The safety lock prevents the switch from being released unintentionally, ensuring that an emergency stop can only be activated when the push button is fully engaged in its locked position.

Can this switch be mounted in confined spaces?

Yes, its short mounting depth of less than 28.5mm makes it suitable for installation in tight areas, facilitating flexibility in equipment design.

Omron 16mm Diameter Cut Out - 230Vac Rated

Modular construction (case + contact or indicator block + lens + lamp)
Easy, snap-together assembly
IP65 sealed
Conforms to EN60943-5-1, IEC947-5-1

Brand	Omron
Contact Configuration	DPST
Voltage Rating	30 Vdc, 250 Vac
Series	A165E
Illuminated	No
IP Rating	IP65
Supply Current	3A
Switch Operation	Latching

OMRON A165E-M-02 | A165E Emergency Stop Push Button | DPST, Latching, IP65

DOWNLOAD CATALOG

A165E-M-02 A165EM02 Datasheet A700000006689214

A165E-M-02 Selection Guide - Safety Components A700000014068218
