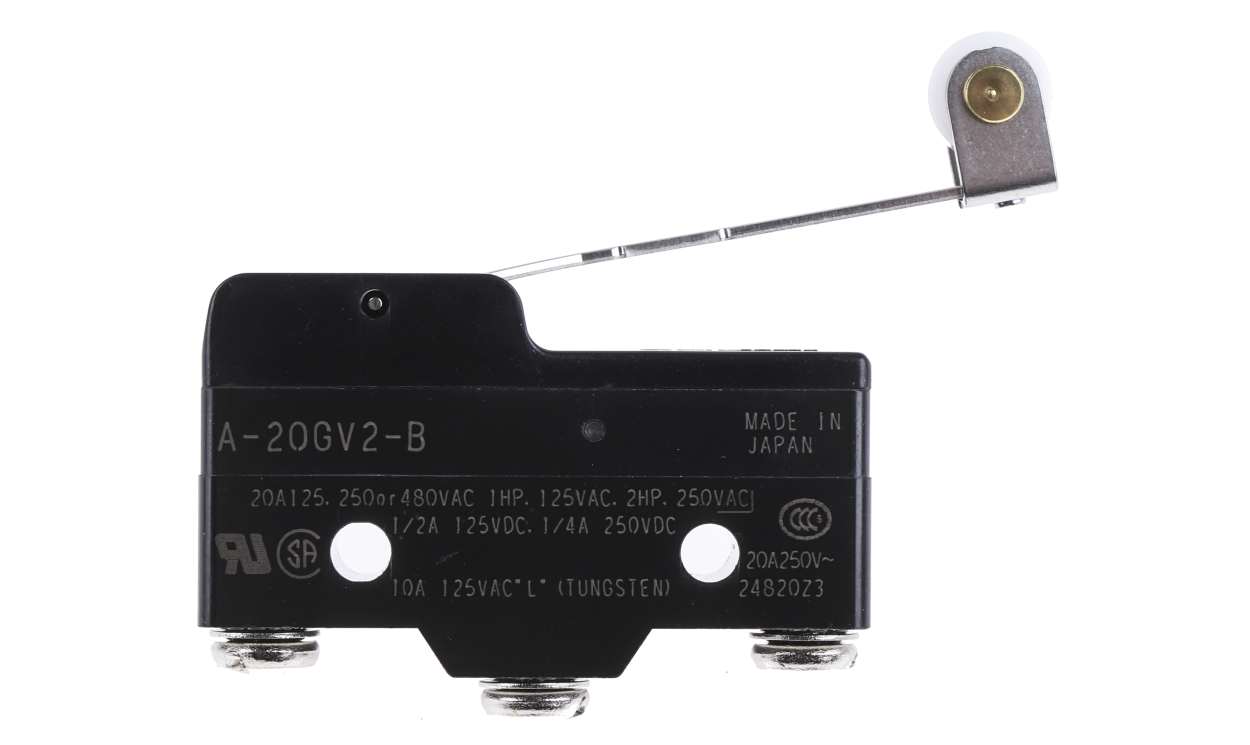

OMRON A-20GV2-B | Hinge Roller Lever Limit Switch | SPDT, 20 A, 0.88 N
The OMRON A-20GV2-B is an A series limit switch with a hinge roller lever and a 0.88 N operating force. Its SPDT snap-action contacts (NO/NC) handle up to 20 A at 500 V AC or 250 V DC.
- Hinge roller lever, 0.88 N operating force
- IP00, screw connection
- -25 to +80 °C
- 1,000,000 operations
- 49.2 x 17.45 x 29.4 mm
- Panel or side mounting
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, SPDT Contact, 0.88 N Operating Force - A-20GV2-B
Features & Benefits
• Snap action design provides quick, reliable response
• Handles currents up to 20A
• Supports maximum AC voltages of 500V
• Panel mount design allows flexible installation
• Mechanical life of 1,000,000 operations for durability
Applications
• Suitable for critical safety circuits in machines
• Employed in lift and elevator control systems
• Utilised for limit detection in robotics
• Fits within various automation control panels
Can it function in extreme temperatures?
Is it easy to install?
Will it handle high electrical loads?
Can it be used in safety applications?
| Brand | Omron |
| Series | A |
| Actuator Type | Hinge Roller Lever |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 20A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | '+80 °C |
| Width | 17.45 mm (0.687 in) |
| Depth | 29.4 mm (1.16 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 1000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Mounting Orientation | Panel, Side |
| Operating Force | 0.88 N |
