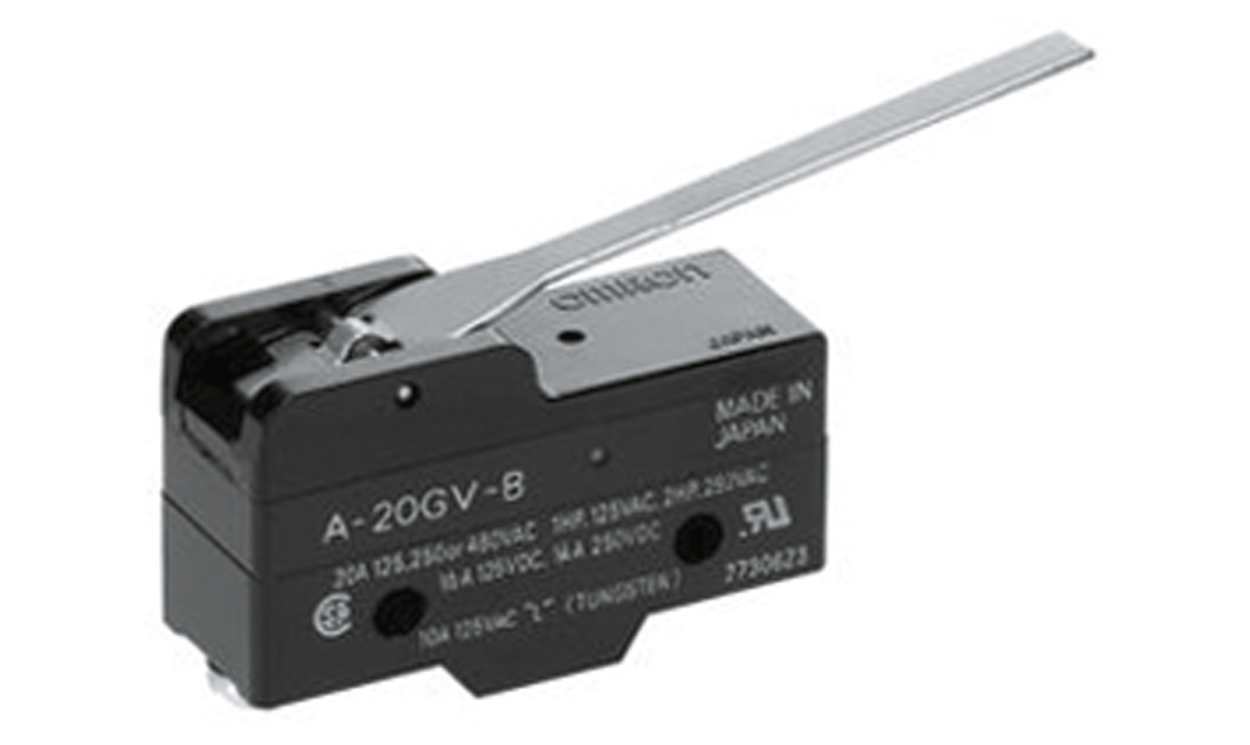

Omron A-20GV-B, Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max

Name: Omron A-20GV-B, Lever Limit Switch, NO/NC, IP00, SPDT, 500V ac Max, 20A Max
Brand: OMRON
SKU: A-20GV-B
Availability: OutOfStock

Part Number : A-20GV-B

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Limit Switch, Lever Actuator, 20A High Current - A-20GV-B

This limit switch is designed for industrial applications requiring precise control and monitoring. Its compact lever actuator ensures reliability across various environments, which is essential for automation and control systems. Featuring a robust design with significant current handling capabilities, this switch enhances operational efficiency in machinery.

Features & Benefits

• High current capacity handling loads up to 20A
• SPDT configuration permits versatile wiring options
• Snap action mechanism provides rapid response times
• Mechanical life rated for over 1,000,000 operations
• Compact panel mount design facilitates easy installation

Applications

• Automation of conveyor systems
• Control circuits for machine tools
• Packaging machinery requiring precise control
• Material handling needing limit detection

What is the maximum voltage that can be applied?

The switch can handle up to 500V AC and 250V DC.

How do I install it securely?

Use M4 mounting screws and ensure proper torque settings during installation.

Is there a specific temperature range for operation?

The switch operates effectively between -25°C and +85°C.

Brand	Omron
Actuator Type	Lever
Pole and Throw Configuration	SPDT
Normal State Configuration	NO/NC
IP Rating	IP00
Maximum Current	20A
Maximum AC Voltage	500V
Maximum DC Voltage	250V
Connection Type	Screw
Action Type	Snap Action
Length	49.2mm
Standards Met	CSA
Width	17.45mm
Depth	29.4mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+85°C
Mounting Orientation	Panel, Side
Mechanical Life	1000000Operations
