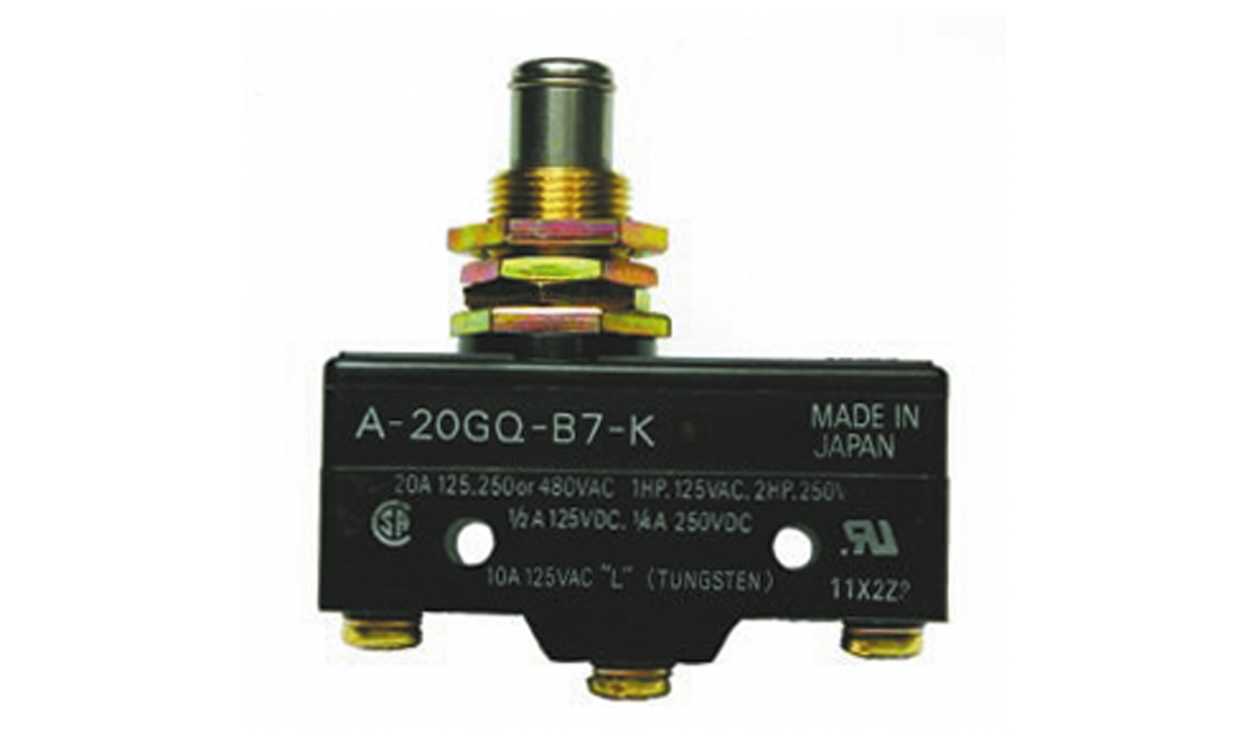

OMRON A-20GQ-B7-K | Plunger Limit Switch | SPDT, 20 A, 500 V AC, IP00
The OMRON A-20GQ-B7-K is a plunger-actuated snap-action limit switch with SPDT, NO/NC contacts rated up to 20 A and 500 V AC (250 V DC). It mounts on panel or side and has screw connections. Full ratings and dimensions are given in the OMRON datasheet.
- IP00 protection
- Screw connection
- Operating range -25 to +85 °C
- 1,000,000 operations mechanical life
- 49.2 x 17.45 x 25.5 mm
- Detailed Description
- Specifications
- Downloads
Omron Limit Switch, SPDT Configuration, Action Type Snap Action - A-20GQ-B7-K
Features & Benefits
• Snap action technology guarantees quick and precise response
• Mechanical lifespan of 1 million operations for long-term reliability
• SPDT configuration offers flexibility in circuit design
• Screw terminal connection simplifies installation and maintenance
Applications
• Ideal for safety and limit detection systems in industrial machinery
• Employed in conveyor systems to control motion and positioning
• Suitable for packaging machinery ensuring precise operation
• Commonly used in electrical panels where space is limited
What is the operational range for ambient temperature?
How does the switch manage large inrush currents?
What type of connection does this switch use for wiring?
How quickly can the actuation respond under normal operating conditions?
| Brand | Omron |
| Actuator Type | Plunger |
| IP Rating | IP00 |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| Maximum Current | 20A |
| Maximum AC Voltage | 500V |
| Action Type | Snap Action |
| Length | 49.2 mm (1.94 in) |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Width | 17.45 mm (0.687 in) |
| Depth | 25.5 mm (1.00 in) |
| Minimum Operating Temperature | -25 °C (-13 °F) |
| Mechanical Life | 1000000Operations |
| Maximum DC Voltage | 250V |
| Connection Type | Screw |
| Mounting Orientation | Panel, Side |
