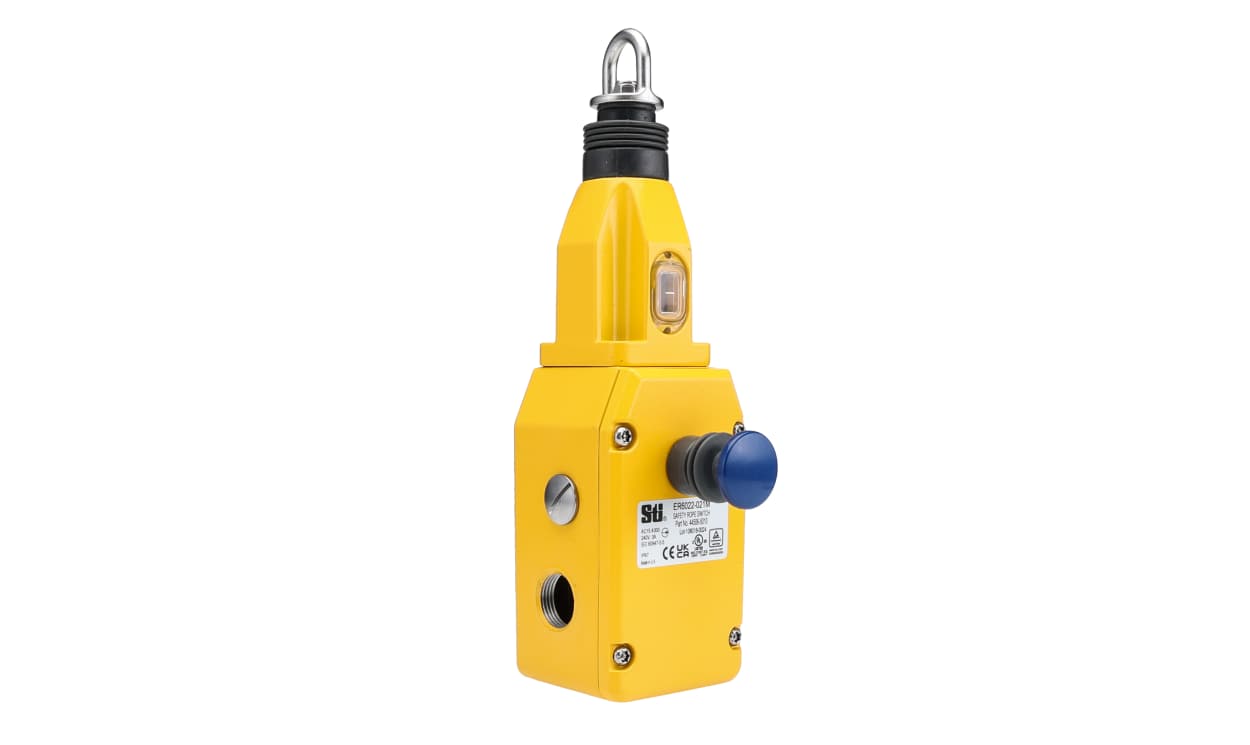

Omron 44506-5010 ER6022-021M, ER Rope Pull Switch, 80m, NO/2NC, Straight

Name: Omron 44506-5010 ER6022-021M, ER Rope Pull Switch, 80m, NO/2NC, Straight
Brand: OMRON
SKU: 44506-5010 ER6022-021M
Availability: OutOfStock

Part Number : 44506-5010 ER6022-021M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Series ER Rope Pull Switch, 240V Maximum AC Voltage, 80m Cable Length - ER6022-021M

This rope pull switch is an essential component for enhancing safety in various industrial applications. With a robust design, it features dimensions of 239mm x 96mm x 86mm, making it compact yet functional. Its heavy-duty die cast aluminium housing ensures durability and protection in demanding environments, while the IP67 rating guarantees resistance to water and dust ingress.

Features & Benefits

• Long cable length of 80m facilitates expansive installations
• 3-pole configuration provides versatile switching options
• Normal state configuration ensures reliable operation
• Nuisance tripping is avoided with vibration-tolerant technology
• Integral E-stop function promotes immediate safety action

Applications

• Used in conveyor systems for automation safety
• Ideal for rotating machinery to prevent accidents
• Suitable for installations in hazardous areas for enhanced protection
• Effective in warehouses to secure safe operating practices
• Effective in outdoor environments due to its weather-resistant design

What is the significance of the IP67 rating for this switch?

The IP67 rating signifies that the switch is completely protected against dust and can withstand immersion in water up to 1 metre, making it ideal for harsh industrial environments.

How does the emergency stop function operate in this switch?

The emergency stop function is activated by pulling the rope, immediately halting machinery operation and providing a safety mechanism in case of emergencies.

What is the maximum permissible operating temperature for this switch?

The switch can operate in environments with temperatures ranging from -25°C to +80°C, ensuring functionality in extreme conditions.

What mounting orientation is required for optimal performance?

The switch can be installed in a straight orientation, allowing ease of access and installation flexibility across various setups.

Brand	Omron
Normal State Configuration	NO/2NC
Cable Length	80m
Mounting Orientation	Straight
IP Rating	IP67
Number of Poles	3P
Series	ER
Length	239mm
Width	96mm
Depth	86mm
Housing Material	Die Cast Aluminium
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
Maximum Current	3A
Dimensions	239 x 96 x 86mm
Maximum DC Voltage	24V
Maximum AC Voltage	240V
Conduit Entry	M20
