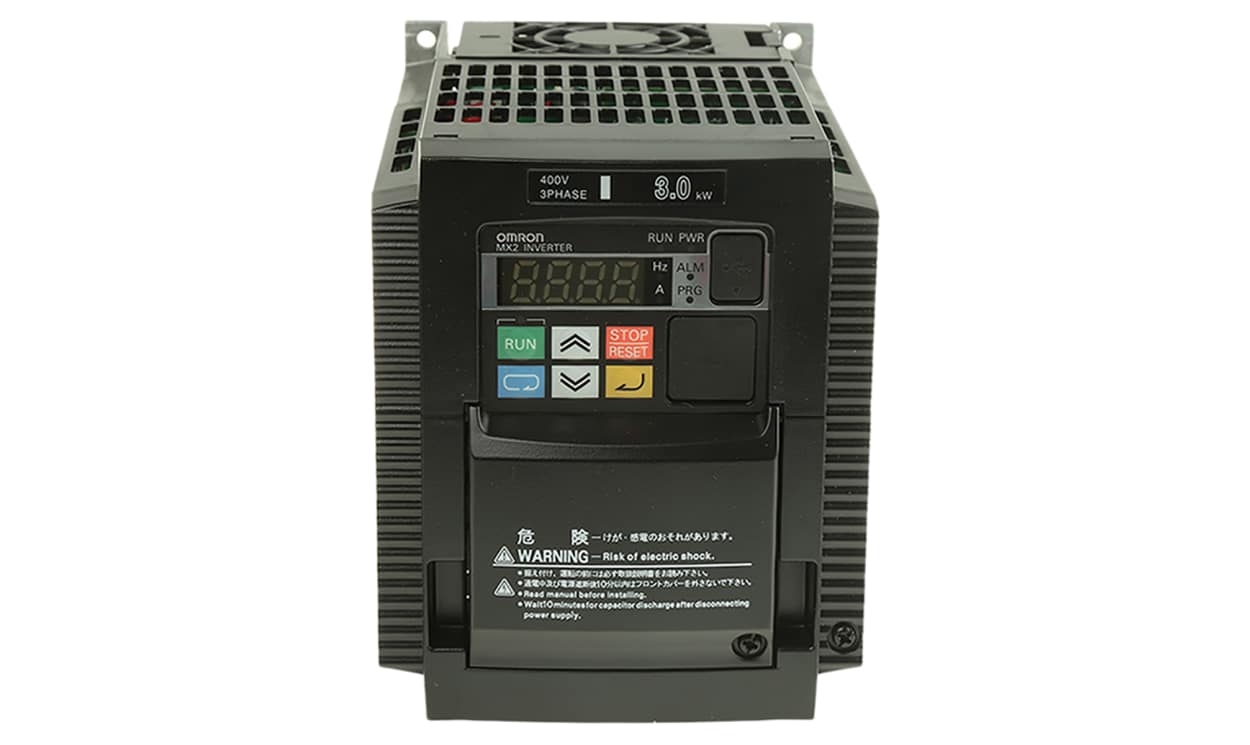

Omron 3G3MX2-A4030-EV2, Inverter Drive, 3 kW, 3 Phase, 400 V ac, 7.2 A, 3G3MX2 Series

Part Number : 3G3MX2-A4030-EV2

Availability: Sold out

Detailed Description
Specifications

Omron MX2 Single and Three Phase Input

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its fast CPU’s and advanced algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop.

Features and benefits

Up to 15 kW
200% starting torque and torque control in open loop
Double rating VT 120%/1min and CT 150%/1min
IM & PM Motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Logic programming
Current vector control
High starting torque: 200% at 0.5Hz
Double rating VT 120%/1min and CT 150%/1min
Speed range up to 1000 Hz
Torque control in open loop vector
Positioning functionality
Built-in application functionality (i.e. Brake control)
User programmable as standard
Safety embedded compliant with ISO13849-1 (double input circuit and external device monitor EDM)
USB port for PC programming
24 Vdc backup supply for control board
Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, ML-II and CanOpen

Omron 3G3MX2 Series Inverter Drive, 3kW Power Rating, 400V Supply Voltage - 3G3MX2A4030ECHN

This inverter drive is an essential component for automation in various industries, specifically designed to operate with AC motors. The 3 kW inverter features a 3-phase configuration and operates at a supply voltage of 400V AC. With a robust design measuring 171mm in depth, 128mm in length, and 108mm in width, it offers performance within an IP20-rated environment, making it suitable for diverse applications.

Features & Benefits

• Current vector control promotes high starting torque
• Supports various fieldbus communications including Profibus
• Built-in logic and application functionality simplify operation
• Safety features compliant with ISO13849-1 enhance operational safety
• USB port enables straightforward PC programming and configuration
• Designed for seamless integration with AC motors and control panels

Applications

• Utilised for precise control of industrial AC motors
• Ideal for requiring variable frequency control
• Employed in automation systems demanding Profibus communication
• Suitable for projects necessitating compliance with safety standards

How does the inverter handle variable frequency requirements in AC motor control?

It features a frequency output range of up to 400 Hz, ensuring precise motor speed control across various operational demands.

What programming options are available for configuration and monitoring of the inverter?

The presence of a USB port allows users to programme the inverter via a PC, providing access to advanced configuration tools like CX-Drive.

What safety measures are integrated to ensure reliable operation?

The inverter includes an embedded Safety Torque Off (STO) function and complies with ISO13849-1, ensuring safety during operations.

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.

Brand	Omron
Power Rating	3 kW
Phase	3
Supply Voltage	400 V ac
Current Rating	7.2 A
Series	3G3MX2
For Use With	AC Motors
Field Bus Communication Type	Profibus
IP Rating	IP20
Output Frequency	400Hz
STO	Yes
Drive Type	CX
Control Panel	Yes
Overall Width	108mm
Standards Met	CE, cULus
Overall Length	128mm
Overall Depth	171mm
