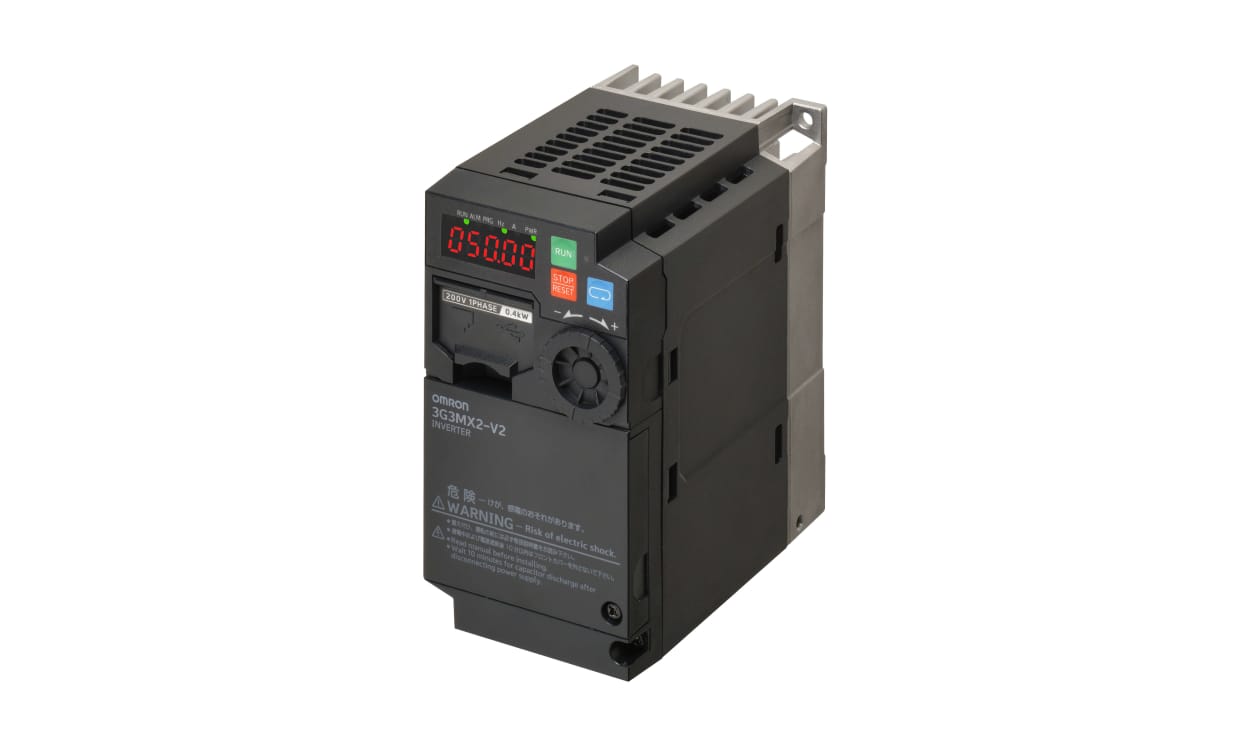

Name: Omron 3G3MX2-A2001-EV2, Inverter Drive, 0.1 kW, 3 Phase, 230 V ac, 1.0 A, 3G3MX2 Series
Brand: OMRON
SKU: 3G3MX2-A2001-EV2
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron 3G3MX2-A2001-EV2, Inverter Drive, 0.1 kW, 3 Phase, 230 V ac, 1.0 A, 3G3MX2 Series

Part Number : 3G3MX2-A2001-EV2

Availability: Sold out

Detailed Description
Specifications

Omron MX2 Single and Three Phase Input

Specifically created for your application, the MX2 was developed to harmonise advanced motor and machine control. Thanks to its fast CPU’s and advanced algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop.

Features and benefits

Up to 15 kW
200% starting torque and torque control in open loop
Double rating VT 120%/1min and CT 150%/1min
IM & PM Motor control
Safety conforming to ISO13849-1 Category3 performance level PLD
Logic programming
Current vector control
High starting torque: 200% at 0.5Hz
Double rating VT 120%/1min and CT 150%/1min
Speed range up to 1000 Hz
Torque control in open loop vector
Positioning functionality
Built-in application functionality (i.e. Brake control)
User programmable as standard
Safety embedded compliant with ISO13849-1 (double input circuit and external device monitor EDM)
USB port for PC programming
24 Vdc backup supply for control board
Fieldbus communications: Modbus, DeviceNet, Profibus, Componet, Ethercat, ML-II and CanOpen

Omron MX2 range

The MX2 is specifically designed to drive machines. It has been developed to harmonise advanced motor and machine control. Thanks to its advanced design and algorithms the MX2 provides smooth control down to zero speed, plus precise operation for fast cyclic operations and torque control capability in open loop. The MX2 also gives you comprehensive functionality for machine control such as positioning, speed synchronisation and logic programming. The MX2 is fully integrated within the Omron smart automation platform.

Brand	Omron
Power Rating	0.1 kW
Phase	3
Supply Voltage	230 V ac
Current Rating	1.0 A
Series	3G3MX2
Field Bus Communication Type	EtherCAT
IP Rating	IP20
Output Frequency	0.1 → 400Hz
STO	Yes
Filter Included	Yes
Overall Depth	109mm
Overall Length	128mm
Overall Width	68mm
