Part Number : 579-443-55

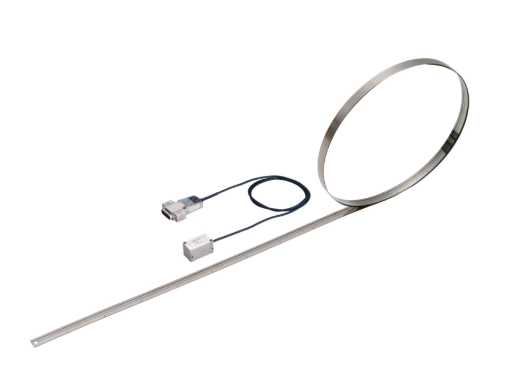

The Mitutoyo 579-443-55 is an absolute tape scale from the ST1300 Series, engineered for high-precision linear measurement applications. It offers a maximum effective length of 12 meters, making it suitable for both short and long-range measurement tasks. With a minimum resolution of 0.001 µm, it ensures exceptional accuracy in positioning. The scale supports a maximum response speed of 8 m/s, ideal for high-speed operations. Its absolute measuring system eliminates the need for referencing after power cycles, enhancing operational efficiency. Designed for durability, it performs reliably in demanding industrial environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ST1351A-1400G
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Position Detection: Eliminates the need for homing after power loss by retaining position data.
12 m Measuring Length: Supports extended applications with a long maximum effective measurement range.
Ultra-Fine Resolution: Offers an impressive 0.001 µm resolution for highly accurate measurements.
High-Speed Capability: Operates at speeds up to 8 m/s, ideal for fast-moving industrial machinery.
Rugged Industrial Design: Built to withstand harsh environments and maintain long-term performance.
Slim, Flexible Format: The tape scale's compact profile allows for easy integration into tight or complex layouts.
