Part Number : 579-403-51

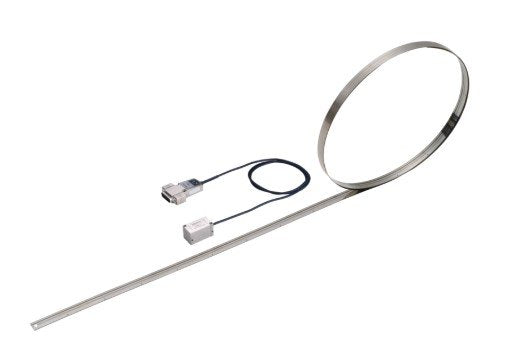

The Mitutoyo 579-403-51 Absolute Tape Scale from the ST1300 Series is a high-accuracy linear measurement system built for long-range industrial use. It offers a maximum effective length of 12 meters, ideal for large-scale machinery. With a minimum resolution of 0.001 µm, it ensures ultra-precise readings. The system supports a maximum response speed of 8 m/s, enabling efficient operation in fast-moving applications. Featuring absolute measurement technology, it eliminates the need for position resetting after power interruptions. Designed for flexibility and durability, it integrates well into advanced automation setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Interface	FANUC high-speed serial interface (+/- and +/-i interface are available)
Length	12 m
Max. Response Speed	8 m/s
Model Number	ABSST1351A-00050E
Resolution	0.001 µm
Series	ST1300
Type	Absolute Tape Scale

Absolute Measurement Technology – No re-zeroing required after power cycles.
Long Measuring Range – Supports a maximum effective length of 12 meters.
Ultra-High Precision – Provides a minimum resolution of 0.001 µm for fine accuracy.
Fast Response Speed – Capable of operating at speeds up to 8 m/s.
Flexible and Durable Design – Ideal for various industrial and automation applications.
Optimized for High-Performance Systems – Perfect for use in CNC machines and precision motion systems.

DOWNLOAD CATALOG
