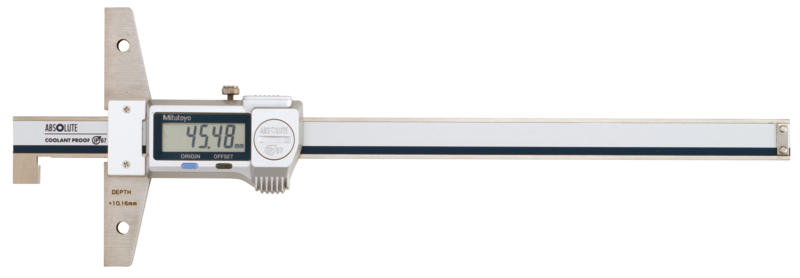

Mitutoyo 571-265-20 | Digital Coolant Proof Hook End Depth Gauge | 10–210 mm hook / 0–200 mm depth
With a hook-shaped end on its main beam, the Mitutoyo 571-265-20 coolant proof depth gauge measures projected portions or lips inside holes in addition to standard depths, over 10 to 210 mm with the hook (0 to 200 mm depth).
- Range .4–8.4 in (0–8 in depth)
- Accuracy ±0.03 mm; resolution 0.01 mm
- IP67 ABSOLUTE scale, no origin reset
- Hook or depth reading selected with the OFF button
- Longer extension bases offered as options
- Specifications
- Features
- Downloads
| Part Number | 571-265-20 |
| Brand | Mitutoyo |
| Range | 10 - 210 mm (0 - 200 mm) / .4 - 8.4" (0 - 8") |
| Resolution | 0.01 mm / .0005 inch |
| Accuracy | ±0.03 mm / ±.0015 inch |
| Measuring Units | Millimetre / Inch |
| Inch-Metric | Inch/Metric |
| Digital/Analog | Digital |
| Power supply | 1 battery SR-44 |
| Depthrange | 0.404-8.4" |
| Hookrange | 0-8" |
| Digital step | 0.005"/0.01 mm |
| ORIGIN (ABS-Zero) | Yes |
| Auto Power OFF after 20 min. non use | Yes |
| Low voltage alarm | Yes |
| Base (W x T) | 3.93" x 0.23" |
| Max. response speed | Unlimited |
| Data output | Yes |
| Functions | Hook Type |
| Battery life | Approx. 5 years |
| Display | LCD, Character Height 9 mm |
| Mass | 236 g |
| Delivered | In a box with SR44 battery |
| Quantity Outer Box (Applies to bulk orders) | 20 pcs |
| Quantity Inner Box (Applies to bulk orders) | 5 pcs |
• The end of the main beam is hook-shaped to allow depth and thickness measurements of a projected portion or lip in a hole, in addition to standard depth measurement.
• Enables stable depth measurement with a resolution of 0.01 mm.
• Features Mitutoyo's ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on.
• Optional longer extension bases are available.
• The OFF button is used to switch between direct display of hook and depth readings.
• Slider operation is smooth and comfortable.
• Models with measurement data output connector may be integrated into statistical process control and measurement systems.
