Mitutoyo 568-466 Digital ABS Borematic (Internal) Inch/Metric, 0.8-1"
Mitutoyo 568-466 Digital ABS Borematic Bore Gauge, .8–1.0" (20.32–25.4 mm), for Bearing Seats
Mitutoyo 568-466 Borematic Bore Gauge 0.8-1" | KSA
Product Summary
The Mitutoyo 568-466 Borematic bore gauge 0.8-1 inch measures internal bores from 20.32 to 25.4 mm, making it suitable for bearing seats, pump housings, hydraulic ports, and other precision bores. Its self-centering three-point measuring head provides repeatable diameter readings, while ±.0003" (±6 µm) accuracy and .00005" (0.001 mm) resolution support close-tolerance inspection. GO/NO-GO judgement and SPC output help streamline quality checks. Contact General Tech at +966 569 289 544 for pricing and availability in Saudi Arabia.
Product Description
A bearing seat needs to match the required fit closely. An oversized bore can allow an outer bearing ring to move in the housing, while an undersized bore can affect the intended fit. Checking the seat before assembly helps identify dimensional issues before the bearing is installed.

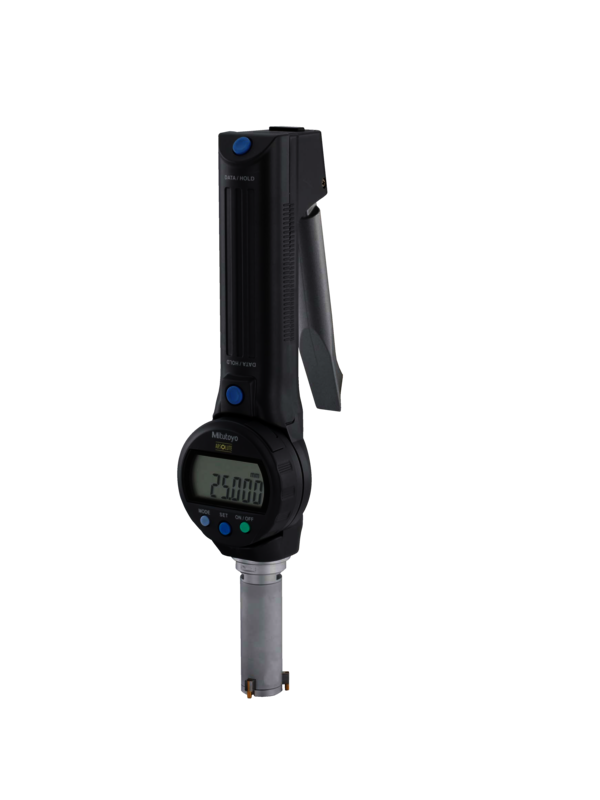

The Mitutoyo 568-466 Borematic bore gauge is designed for internal diameter inspection across a .8–1.0" (20.32–25.4 mm) range. It uses a three-point self-centering measuring head to position the contact points around the bore and provide a direct internal diameter reading.
The snap-open lever supports quick operation: squeeze the lever, insert the measuring head into the bore, release it, and allow the contacts to self-centre. This makes the gauge suitable for repeated inspection of bearing seats, pump housings, hydraulic ports, gearbox covers, and other machined components.
The 568-466 provides ±.0003" (±6 µm) accuracy with .00005" (0.001 mm) resolution. Its LCD uses 8.5 mm digits and the display unit can rotate through 330°, allowing the reading to be positioned toward the operator.
The electrostatic capacitance ABSOLUTE encoder maintains the measurement origin throughout the battery life and supports unlimited response without over-speed errors. TiN-coated measuring contact points can reach close to the bottom of suitable blind holes and recessed seats.
For longer or deeper housings, the optional 150 mm extension rod 952622 can provide additional reach where applicable. A matching setting ring is sold separately and is used to establish the measurement reference before inspection.
The gauge also supports GO/NO-GO judgement using user-defined upper and lower limits. This allows operators to quickly evaluate whether a bearing seat or other bore is within the specified tolerance.
For quality documentation, measurement values can be held or transferred through Digimatic SPC output. Compatible options include SPC cables 905338 (1 m) and 905409 (2 m), USB Input Tool Direct 06ADV380F, and U-WAVE-T wireless connectivity through the applicable connecting cable.
The Mitutoyo 568-466 is the next size above the 568-465, which covers .650–.800", while the 568-467 covers 1.0–1.2". The 568-966 set can be considered where multiple Borematic sizes are required.
Key Benefits
-
.8–1.0" measuring range: Covers internal diameters from 20.32 to 25.4 mm.
-
Bearing seat inspection: Suitable for checking machined bearing seats before assembly.
-
Three-point self-centering: Helps centre the measuring head inside the bore for repeatable readings.
-
±.0003" accuracy: Provides ±6 µm accuracy for close-tolerance internal diameter inspection.
-
.00005" resolution: Provides 0.001 mm resolution for detailed measurements.
-
Snap-open operation: One-handed squeeze, insert, and release operation supports fast repetitive checks.
-
GO/NO-GO judgement: User-defined limits provide quick tolerance evaluation.
-
Blind-hole capability: TiN-coated contacts reach close to the bottom of suitable blind bores and recessed seats.
-
Optional 150 mm extension: Extension rod 952622 can provide additional reach for applicable deep housings.
-
ABSOLUTE encoder: Maintains the origin and prevents over-speed errors during rapid movement.
-
330° rotatable display: Lets the operator position the display for convenient viewing.
-
SPC data output: Supports transferring measurement results to compatible quality-control systems.
-
Inch/metric measurement: Switch between inch and millimetre units.
-
Long battery life: Uses one SR44 battery with approximately 5,000 hours of specified operation.
Who This Product Is Best For
The Mitutoyo 568-466 is suitable for rotating-equipment workshops, pump and motor repair teams, automotive component manufacturers, heavy-equipment maintenance departments, hydraulic service companies, and precision machining facilities in Saudi Arabia and the GCC.
Typical applications include:
-
Small ball and needle bearing seats
-
Pump and motor housings
-
Hydraulic cylinder ports
-
Hydraulic valve ports
-
Gearbox cover bores
-
Bearing housing inspection
-
Machined internal diameters
-
Deep or recessed bores
-
Petrochemical and power-plant equipment components
How to Use / How It Works
-
Prepare the reference: Use a suitable setting ring covering the .8–1.0" range. The setting ring is sold separately.
-
Set the origin: Insert the gauge into the setting ring, press ORIGIN, and enter the certified ring dimension according to the instrument procedure.
-
Set tolerance limits: Enter the required upper and lower limits when using GO/NO-GO judgement.
-
Insert the gauge: Squeeze the snap-open lever and insert the measuring head into the bearing seat or bore.
-
Release and centre: Release the lever and allow the three-point contact system to self-centre inside the bore.
-
Read the diameter: Position the 330° rotatable display for convenient viewing and record the measurement.
-
Transfer the result: Hold the reading or send it to a compatible SPC system through the appropriate cable, USB Input Tool Direct, or U-WAVE-T connection.
Frequently Asked Questions
What range does the Mitutoyo 568-466 measure?
The 568-466 measures .8–1.0" (20.32–25.4 mm) internal diameters and supports inch or millimetre measurement.
How accurate is the Mitutoyo 568-466?
The specified accuracy is ±.0003" (±6 µm) with .00005" (0.001 mm) resolution.
Is the 568-466 suitable for bearing seats?
Yes. Its three-point self-centering measuring head provides a direct internal diameter reading for suitable bearing seats and other precision bores.
Can the 568-466 measure blind holes?
Its TiN-coated contact points can reach close to the bottom of suitable blind holes. Actual measurement depth depends on the geometry and access of the bore.
Does the gauge support GO/NO-GO inspection?
Yes. Operators can enter upper and lower tolerance limits and use the GO/NO-GO judgement function for quick pass/fail evaluation.
Can the 568-466 send measurements to SPC software?
Yes. The gauge provides Digimatic SPC output and supports compatible SPC cables, USB Input Tool Direct, and U-WAVE-T wireless connectivity.
Is a setting ring included?
No. The setting ring is sold separately. A suitable matching ring should be selected for setting and verifying the gauge.
Is an extension rod available?
Yes. The optional 150 mm extension rod 952622 is available for applicable deeper measurement requirements.
Which Borematic model should I choose?
Select the model according to the bore diameter. The 568-465 covers .650–.800", the 568-466 covers .8–1.0", and the 568-467 covers 1.0–1.2". The 568-966 set can be considered when multiple Borematic sizes are required.
Where can I buy the Mitutoyo 568-466 in Saudi Arabia?
Contact General Tech for pricing, availability, and product assistance in Saudi Arabia.
Phone: +966 569 289 544
Email: mathews@generaltechsaudi.com
