Mitutoyo 559-533-03 | NC-Linear Scale AT1303A-600-H_50nm | Mitutoyo ENSIS Interface | Resolution 50 ¼m

Name: Mitutoyo 559-533-03 | NC-Linear Scale AT1303A-600-H_50nm | Mitutoyo ENSIS Interface | Resolution 50 ¼m
Brand: Mitutoyo
SKU: 559-533-03
Availability: OutOfStock

Part Number : 559-533-03

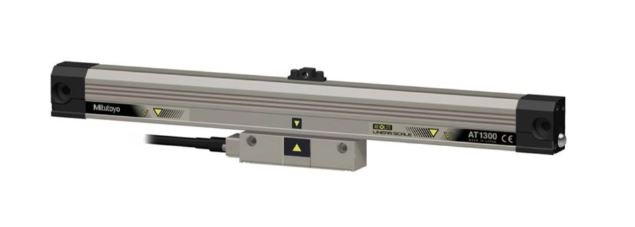

The Mitutoyo 559-533-03 is an NC Linear Scale model AT1303A-600-H_50nm, designed for high-precision measurement applications. It features a resolution of 50 nanometers (50 nm), making it suitable for tasks requiring fine measurement accuracy. The scale is compatible with the Mitutoyo ENSIS Interface, enabling seamless integration with various CNC and motion control systems. Its robust construction ensures reliable performance in demanding industrial environments. The scale's design allows for easy installation and maintenance, contributing to efficient operation in precision machining and metrology applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	ENSIS Interface
Length	Cable Length : Maximum 29 m (signal cable + feedback cable)
Model Number	ABSAT1303-600-H
Power Source	5 VDC +/- 10%
Resolution	50 1/4m
Type	Linear Scale

High Resolution: Provides a fine resolution of 50 nanometers (50 nm), ensuring precise measurement capabilities.
Advanced Detection Technology: Utilizes a two-sided telecentric optical system for imaging, enhancing robustness and allowing for a wider imaging range. This design improves tolerance to scale waviness, stage orientation variations, and slight contamination.
Compatibility with Mitutoyo ENSIS Interface: Supports half-duplex communication with the Mitutoyo ENSIS interface, facilitating seamless integration with various CNC and motion control systems.
Durable and Contamination-Resistant Design: Features a coolant-proof construction with a high-performance rubber seal, making it suitable for harsh factory environments where exposure to coolants and contaminants is common.
Slim Form Factor: Designed with a slim profile, the scale allows for space-saving installations and is compatible with other Mitutoyo components, providing flexibility in various machine configurations.
