Mitutoyo 559-532-07 | NC-Linear Scale AT1307A-500-H_1nm | Mitutoyo ENSIS Interface | Resolution 1 ¼m

Name: Mitutoyo 559-532-07 | NC-Linear Scale AT1307A-500-H_1nm | Mitutoyo ENSIS Interface | Resolution 1 ¼m
Brand: Mitutoyo
SKU: 559-532-07
Availability: OutOfStock

Part Number : 559-532-07

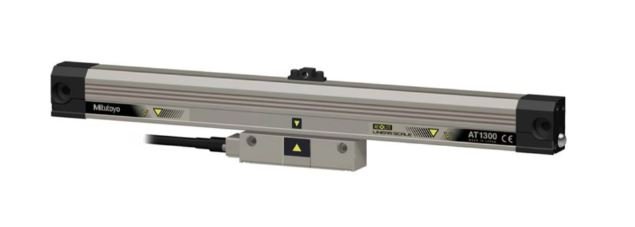

The Mitutoyo 559-532-07 is a high-precision NC Linear Scale model AT1307A-500-H_1nm, designed for accurate position feedback in CNC machinery. It features a resolution of 1 nanometer (1 nm), making it suitable for ultra-fine measurement tasks. The scale is compatible with the Mitutoyo ENSIS Interface, enabling seamless integration into digital systems. Built for durability and reliability, it operates effectively in demanding industrial environments. Its high resolution ensures exceptional precision in machining and metrology applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	ENSIS Interface
Length	Cable Length : Maximum 29 m (signal cable + feedback cable)
Model Number	ABSAT1307-500-H
Power Supply	5 VDC +/- 10%
Resolution	1 1/4m
Type	Linear Scale

High Resolution: Provides an ultra-fine resolution of 1 nanometer (1 nm), ensuring exceptional precision in measurements.
Advanced Detection Technology: Utilizes a two-sided telecentric optical system for imaging, enhancing robustness and allowing for a wider imaging range. This design improves tolerance to scale waviness, stage orientation variations, and slight contamination.
Compatibility with Mitutoyo ENSIS Interface: Supports half-duplex communication with the Mitutoyo ENSIS interface, facilitating seamless integration with various CNC and motion control systems.
Durable and Contamination-Resistant Design: Features a coolant-proof construction with a high-performance rubber seal, making it suitable for harsh factory environments where exposure to coolants and contaminants is common.
Slim Form Factor: Designed with a slim profile, the scale allows for space-saving installations and is compatible with other Mitutoyo components, providing flexibility in various machine configurations.
