Mitutoyo 559-529-04 | NC-Linear Scale AT1304A-350-H_10nm | Mitutoyo ENSIS Interface | Resolution 10 ¼m

Name: Mitutoyo 559-529-04 | NC-Linear Scale AT1304A-350-H_10nm | Mitutoyo ENSIS Interface | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-529-04
Availability: OutOfStock

Part Number : 559-529-04

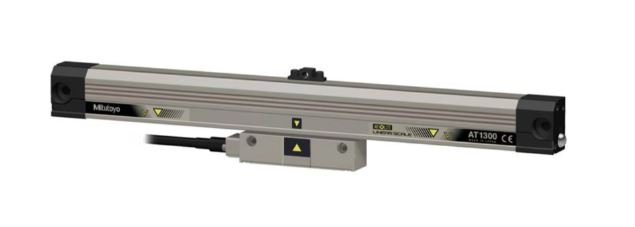

The Mitutoyo 559-529-04 NC-Linear Scale AT1304A-350-H_10nm is a high-precision linear encoder designed for demanding CNC and metrology applications. With a resolution of 10 nanometers (nm), it offers ultra-fine positional accuracy. The scale utilizes Mitutoyo's proprietary electromagnetic induction detection system, ensuring approximately six times higher accuracy than previous scales. Its robust construction and high-performance rubber seal provide excellent resistance to coolant and dust, enhancing durability in harsh factory environments. The scale interfaces with the Mitutoyo ENSIS system, allowing for seamless data communication and integration with control units.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	ENSIS Interface
Length	Cable Length : Maximum 29 m (signal cable + feedback cable)
Model Number	ABSAT1304-350-H
Power Supply	5 VDC +/- 10%
Resolution	10 1/4m
Type	Linear Scale

High Resolution: Delivers an impressive resolution of 10 nanometers (nm), enabling ultra-fine positional accuracy.
Durable Construction: Designed with a slim form factor and robust materials, it ensures reliability even in harsh factory environments.
Advanced Detection Technology: Utilizes Mitutoyo's proprietary electromagnetic induction detection system, achieving approximately six times higher accuracy than previous scales.
Enhanced Contamination Resistance: Features a high-performance rubber seal that provides excellent resistance to coolant and dust, reducing the likelihood of failure due to contaminants.
Seamless Integration: Compatible with the Mitutoyo ENSIS system, allowing for direct connection to NC controllers and facilitating smooth data communication.
