Mitutoyo 559-527-37 | NC-Linear Scale AT1347-250-H_1nm | Mitsubishi Interface Full Duplex | Resolution 1 ¼m

Name: Mitutoyo 559-527-37 | NC-Linear Scale AT1347-250-H_1nm | Mitsubishi Interface Full Duplex | Resolution 1 ¼m
Brand: Mitutoyo
SKU: 559-527-37
Availability: OutOfStock

Part Number : 559-527-37

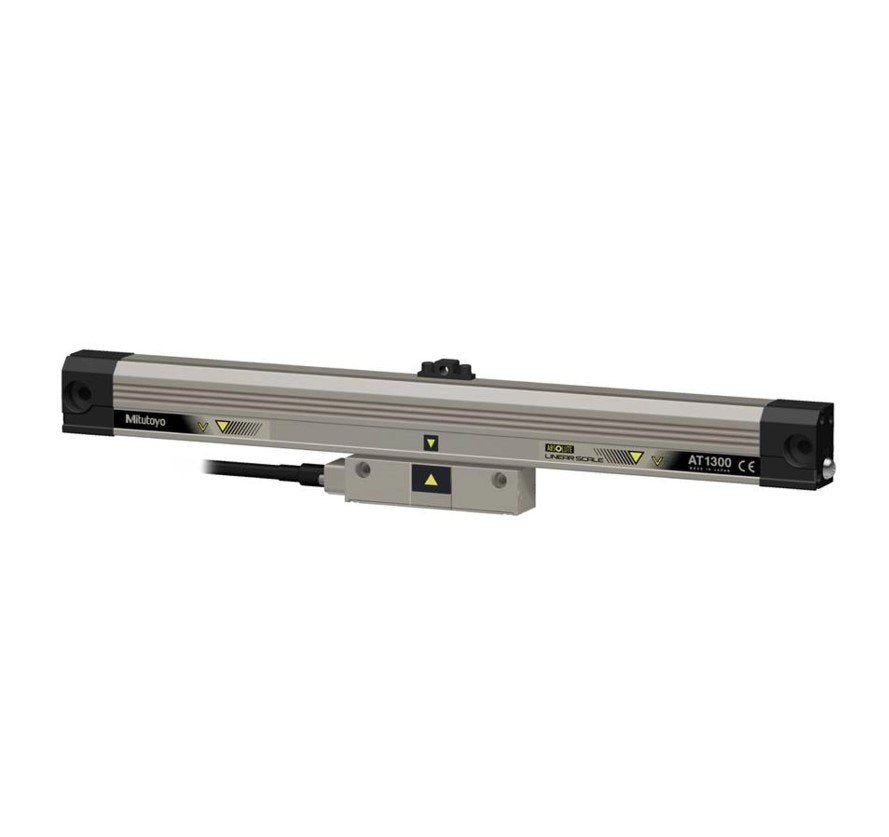

The Mitutoyo 559-527-37 (AT1347-250-H_1nm) is a high-precision NC-linear scale designed for applications requiring nanometer-level resolution and high-speed data communication. With an exceptional 1 nm (0.001 μm) resolution, it provides outstanding accuracy for advanced CNC and metrology systems. The scale features a Mitsubishi full-duplex interface, enabling real-time, two-way communication for accurate and fast data transmission. Its sealed, rugged construction ensures protection against contaminants like coolant, oil, and dust, making it ideal for high-precision manufacturing environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi Interface Full Duplex
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Max. Response Speed	180 m/min
Power Supply	5 VDC +/- 10%
Resolution	1 1/4m
Series	ABS AT1300-H Series
Type	H-Type

1 nm (0.001 μm) resolution: Offers ultra-high precision for critical position measurements and feedback.
Mitsubishi full-duplex interface: Facilitates fast, real-time bi-directional communication with Mitsubishi CNC systems.
Fully compatible with Mitsubishi Electric CNC controllers and servo systems.
Sealed construction provides protection against coolant, oil, dust, and mechanical debris, ensuring reliability in harsh conditions.
Engineered for high precision CNC machines, lathes, grinders, and coordinate measuring machines (CMMs).
Rigid mechanical design resists vibration, thermal expansion, and mechanical shock.
Supports integration with advanced automation systems and digital feedback loops.
Ideal for industries requiring nanometer-level accuracy, such as aerospace, semiconductor, and precision tooling.
Provides high repeatability, ensuring minimal errors over time and consistent performance.
