Mitutoyo 559-526-04 | NC-Linear Scale AT1304A-200-H_10nm | Mitutoyo ENSIS Interface | Resolution 10 ¼m

Name: Mitutoyo 559-526-04 | NC-Linear Scale AT1304A-200-H_10nm | Mitutoyo ENSIS Interface | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-526-04
Availability: OutOfStock

Part Number : 559-526-04

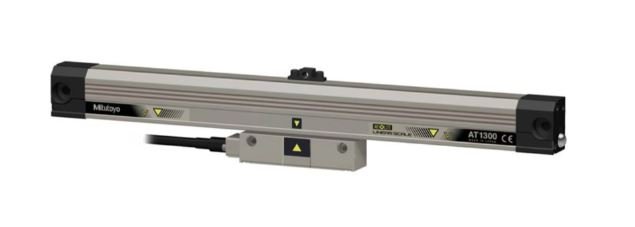

The Mitutoyo 559-526-04 NC-Linear Scale AT1304A-200-H_10nm is a precision linear encoder designed for high-accuracy position measurement in CNC and automated machinery. It features a resolution of 10 nanometers, ensuring extremely fine measurement capability. The scale is part of the AT1304A series and supports high-speed, high-accuracy digital signal output. It connects via the Mitutoyo ENSIS Interface, which ensures reliable data communication with compatible systems. Designed for demanding industrial environments, it offers durability, repeatability, and long-term stability.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	ENSIS Interface
Length	Cable Length : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	10 1/4m
Series	ABSAT1304-200-H
Type	Linear Scale

High Resolution: Offers an impressive resolution of 10 nanometers, ensuring precise position feedback for high-accuracy applications.
ENSIS Interface Compatibility: Utilizes the Mitutoyo ENSIS (Enhanced Serial Interface System) for reliable data transmission, suitable for half-duplex communication.
Durable Construction: Designed with robust materials to withstand harsh industrial environments, ensuring longevity and consistent performance.
Versatile Mounting Options: Features a modular design that allows for flexible installation on various CNC machines and automated systems.
Enhanced Signal Integrity: Incorporates advanced signal processing techniques to minimize noise and maintain high measurement accuracy over time.
