Mitutoyo 559-525-53 | NC-Linear Scale AT1353-150-H_50nm | FANUC Interface Full Duplex | Resolution 50 ¼m

Name: Mitutoyo 559-525-53 | NC-Linear Scale AT1353-150-H_50nm | FANUC Interface Full Duplex | Resolution 50 ¼m
Brand: Mitutoyo
SKU: 559-525-53
Availability: OutOfStock

Part Number : 559-525-53

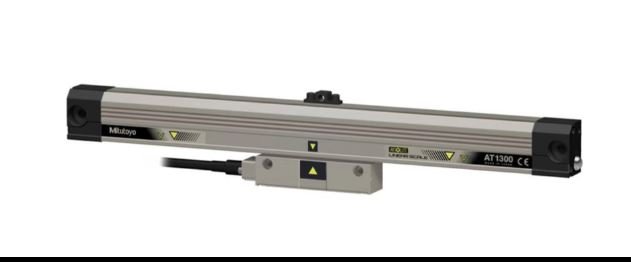

The Mitutoyo 559-525-53 NC-Linear Scale AT1353-150-H_50nm is a high-precision linear encoder designed for use in CNC machine tools. It features a 50 µm resolution, providing accurate position feedback for enhanced machining precision. The scale utilizes a FANUC interface with full-duplex communication for fast and reliable data exchange. With its robust design, it ensures durability and performance in industrial environments. This encoder is ideal for applications requiring moderate precision, such as milling and turning operations in manufacturing systems.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	FANUC Interface Full Duplex
Length	Signal Cable : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	50 1/4m
Series	ABS AT1300-S Series
Type	Linear Scale

50 µm Resolution: Provides precise positional feedback with a 50-micron resolution, suitable for medium-precision applications.
FANUC Full Duplex Interface: Enables bidirectional communication for faster and more reliable data transfer between the scale and the CNC system.
High Durability: Designed to withstand challenging industrial environments, ensuring long-lasting performance.
Absolute Positioning: Eliminates the need for reference point return after power-up, improving efficiency in setup and operation.
Wide Operating Temperature Range: Functions effectively in a temperature range of 0 to 50°C, ideal for various industrial conditions.
