Mitutoyo 559-525-44 | NC-Linear Scale AT1344A-150-H_10nm | Mitsubishi Interface Half Duplex | Resolution 10 ¼m

Name: Mitutoyo 559-525-44 | NC-Linear Scale AT1344A-150-H_10nm | Mitsubishi Interface Half Duplex | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-525-44
Availability: OutOfStock

Part Number : 559-525-44

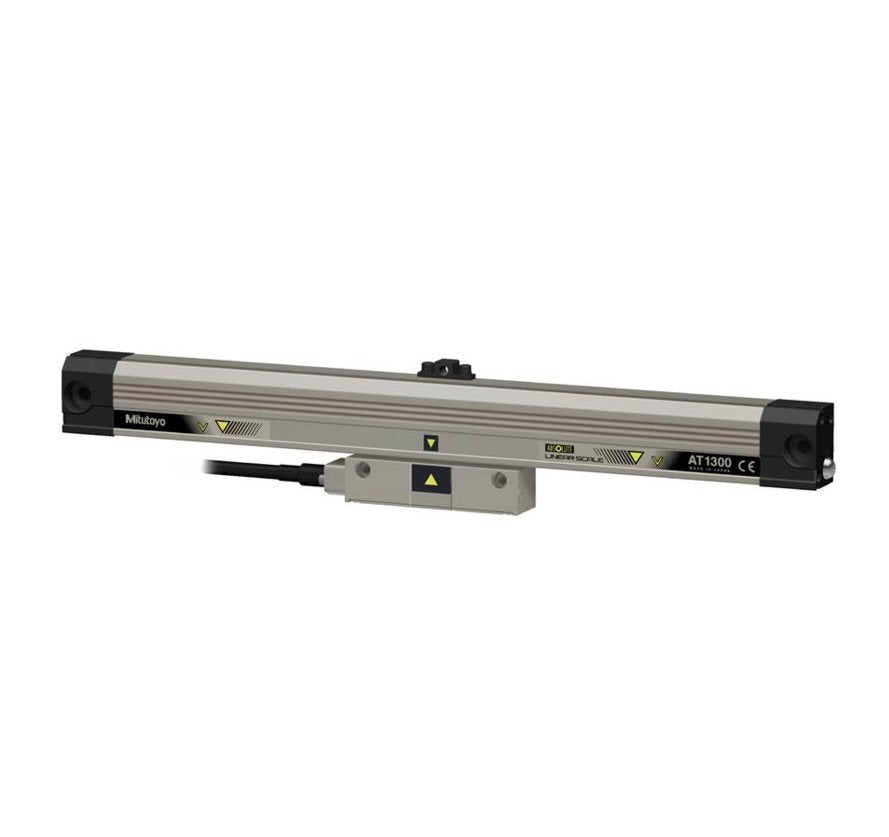

The Mitutoyo 559-525-44 (AT1344A-150-H_10nm) is a high-performance NC-linear scale engineered for precise positioning in CNC machines and metrology systems. Featuring a 10 nm (0.01 μm) resolution, it provides outstanding accuracy for applications requiring fine measurement. The scale utilizes a Mitsubishi half-duplex interface, offering efficient one-way communication with Mitsubishi CNC controllers. Built for industrial environments, it is sealed to resist the intrusion of dust, coolant, and oil, ensuring stable and reliable operation in demanding conditions. Ideal for high-precision machining and inspection tasks, it excels in performance while maintaining durability.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi Interface Half Duplex
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Max. Response Speed	180 m/min
Power Supply	5 VDC +/- 10%
Resolution	10 1/4m
Series	ABS AT1300-H Series
Type	H-Type

10 nm (0.01 μm) resolution: Offers exceptional accuracy and precision for demanding applications.
Mitsubishi half-duplex interface: Facilitates stable, one-way communication for seamless integration with Mitsubishi CNC systems.
Compatible with Mitsubishi Electric servo controllers and motion control systems.
Sealed housing provides protection against coolant, oil, dust, and mechanical debris.
Designed for CNC machines, grinders, lathes, and coordinate measuring machines (CMMs).
Rugged construction ensures resistance to thermal changes, vibration, and mechanical shock.
Suitable for high-precision tasks in industries like aerospace, automotive, and general manufacturing.
Delivers high repeatability and minimal interpolation error, ensuring consistent performance.
Reliable for use in environments where both precision and environmental durability are required.
