Mitutoyo 559-525-03 | NC-Linear Scale AT1303A-150-H_50nm | Mitutoyo ENSIS Interface | Resolution 50 ¼m

Name: Mitutoyo 559-525-03 | NC-Linear Scale AT1303A-150-H_50nm | Mitutoyo ENSIS Interface | Resolution 50 ¼m
Brand: Mitutoyo
SKU: 559-525-03
Availability: OutOfStock

Part Number : 559-525-03

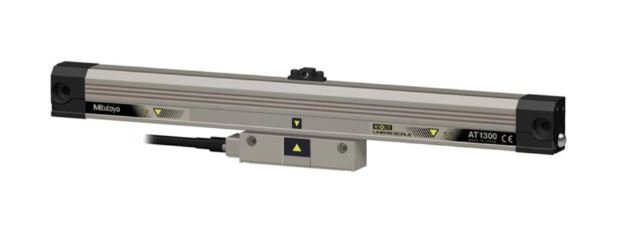

The Mitutoyo 559-525-03 NC-Linear Scale AT1303A-150-H_50nm is a precision linear encoder designed for high-accuracy position detection in CNC and metrology applications. It features a resolution of 50 nanometers (nm), enabling extremely fine measurement capability. The scale is part of the Mitutoyo AT1303A series, known for durability and reliable performance in demanding industrial environments. It interfaces with the Mitutoyo ENSIS system, ensuring seamless data communication and integration with control units. This scale is ideal for applications requiring high precision and stable performance under tough machining conditions.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	ENSIS Interface
Length	Cable Length : Maximum 29 m (signal cable + feedback cable)
Model Number	ABSAT1303-150-H
Power Supply	5 VDC +/- 10%
Resolution	50 1/4m
Type	Linear Scale

High Resolution: Delivers an impressive resolution of 50 nanometers (nm), enabling ultra-fine positional accuracy.
Durable Construction: Designed with a slim form factor and robust materials, it ensures reliability even in harsh factory environments.
Advanced Detection Technology: Utilizes Mitutoyo's proprietary electromagnetic induction detection system, achieving approximately six times higher accuracy than previous scales.
Enhanced Contamination Resistance: Features a high-performance rubber seal that provides excellent resistance to coolant and dust, reducing the likelihood of failure due to contaminants.
Seamless Integration: Compatible with the Mitutoyo ENSIS system, allowing for direct connection to NC controllers and facilitating smooth data communication.
