Mitutoyo 559-524-53 | NC-Linear Scale AT1353-100-H_50nm | FANUC Interface Full Duplex | Resolution 50 ¼m

Name: Mitutoyo 559-524-53 | NC-Linear Scale AT1353-100-H_50nm | FANUC Interface Full Duplex | Resolution 50 ¼m
Brand: Mitutoyo
SKU: 559-524-53
Availability: OutOfStock

Part Number : 559-524-53

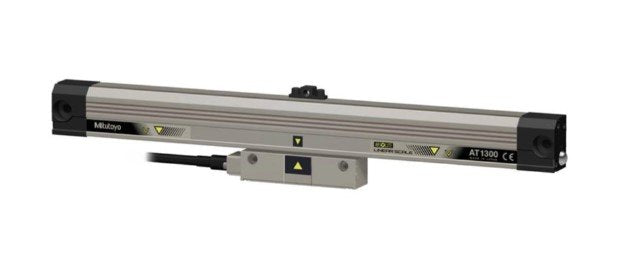

The Mitutoyo 559-524-53 (NC-Linear Scale AT1353-100-H_50nm) is a high-precision linear encoder designed for CNC and metrology applications. It offers a resolution of 50 nanometers (nm), making it suitable for demanding measurement tasks requiring fine accuracy. The scale is equipped with a FANUC Full Duplex interface, ensuring reliable communication with FANUC control systems. Its rugged construction supports stable performance in industrial environments. Ideal for precision machine tools and coordinate measuring machines (CMMs).

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	FANUC Interface Full Duplex
Length	Signal Cable : Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	50 1/4m
Series	ABS AT1300-S Series
Type	Linear Scale

Ultra-Fine Resolution: Offers a resolution of 50 nanometers (0.05 micrometers), enabling extremely precise measurements essential for high-accuracy machining and metrology applications.
Full-Duplex FANUC Interface: Equipped with a full-duplex communication interface compatible with FANUC CNC systems, ensuring seamless data exchange and real-time feedback between the scale and the cont
High-Speed Data Transmission: Supports rapid data transfer, facilitating efficient machine operation and reducing latency in feedback loops.
Robust Construction: Designed to withstand demanding industrial environments, ensuring durability and consistent performance over time.
Versatile Application: Ideal for use in precision machine tools, coordinate measuring machines (CMMs), and other applications requiring high-precision linear measurement.
