Mitutoyo 559-524-44 | NC-Linear Scale AT1344A-100-H_10nm | Mitsubishi Interface Half Duplex | Resolution 10 ¼m

Name: Mitutoyo 559-524-44 | NC-Linear Scale AT1344A-100-H_10nm | Mitsubishi Interface Half Duplex | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-524-44
Availability: OutOfStock

Part Number : 559-524-44

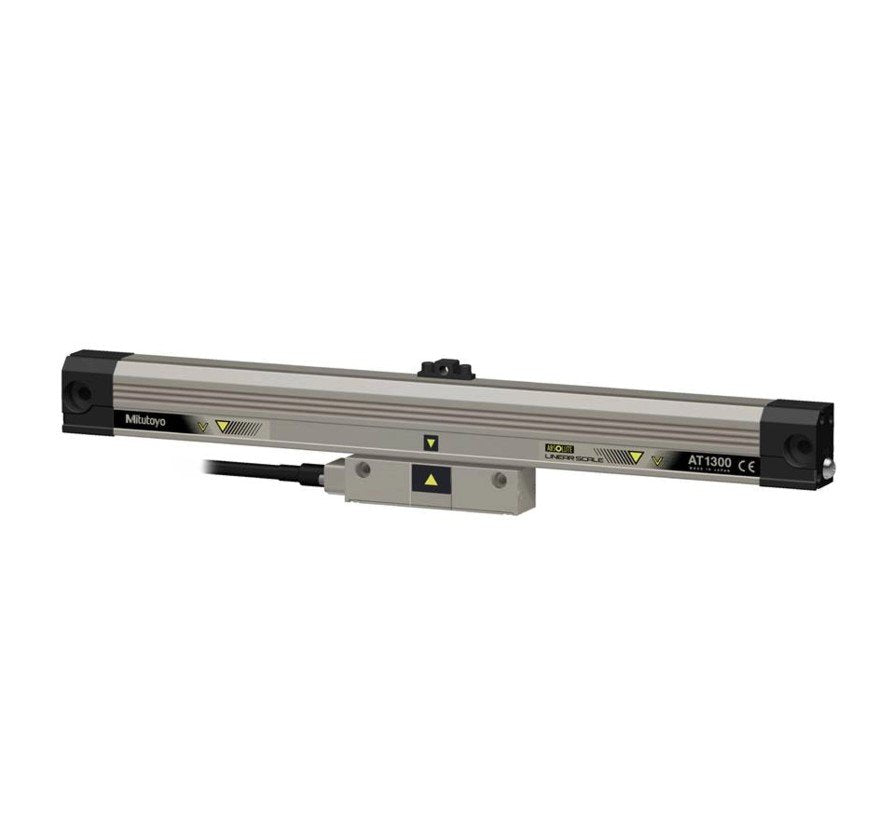

The Mitutoyo 559-524-44 (AT1344A-100-H_10nm) is a precision NC-linear scale built for CNC systems and metrology setups that require reliable, high-resolution feedback. With a 10 nm (0.01 μm) resolution, it ensures precise position detection for demanding machining operations. The scale features a Mitsubishi half-duplex interface, providing dependable one-way communication ideal for feedback applications. Designed with a sealed, rugged housing, it resists harsh industrial environments including oil, dust, and coolant exposure. This model is well-suited for mid- to high-precision machines in automotive, aerospace, and general engineering sectors.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi Interface Half Duplex
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Max. Response Speed	180 m/min
Power Supply	5 VDC +/- 10%
Resolution	10 1/4m
Series	ABS AT1300-H Series
Type	H-Type

10 nm (0.01 μm) resolution: Supports high-accuracy position measurement and control.
Excellent repeatability and low interpolation error for precision applications.
Mitsubishi half-duplex interface: Ensures stable, unidirectional communication for consistent feedback.
Compatible with Mitsubishi Electric CNC controllers and servo systems.
Rigid mechanical structure offers resistance to thermal expansion, vibration, and mechanical shocks.
Sealed construction protects internal optics from coolant, oil, dust, and machining debris.
Suitable for precision CNC machines, grinders, lathes, and inspection tools.
Integrates easily with standard automation and digital feedback loops.
Ideal for high-end metalworking, aerospace, and precision fabrication environments.
A reliable solution balancing precision performance and robust durability.

Mitutoyo 559-524-44 | NC-Linear Scale AT1344A-100-H_10nm | Mitsubishi Interface Half Duplex | Resolution 10 ¼m

DOWNLOAD CATALOG
