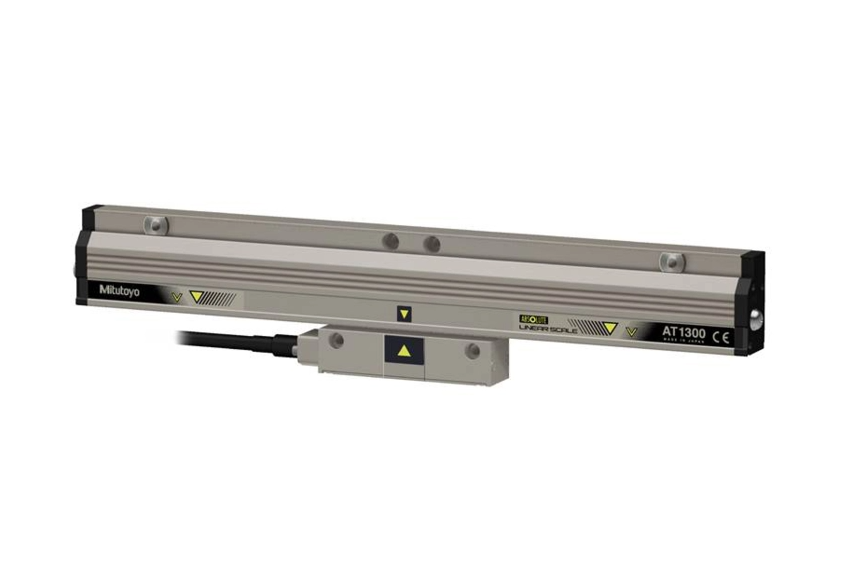

Mitutoyo 559-514-04 | NC-Linear Scale AT1304A-1000-S_10nm | ENSIS Interface Half Duplex | Resolution 10 ¼m

Name: Mitutoyo 559-514-04 | NC-Linear Scale AT1304A-1000-S_10nm | ENSIS Interface Half Duplex | Resolution 10 ¼m
Brand: Mitutoyo
SKU: 559-514-04
Availability: OutOfStock

Part Number : 559-514-04

The Mitutoyo 559-514-04 NC linear scale delivers a high resolution of 10 nanometers (0.01 µm), making it ideal for applications requiring precise position feedback. With a measuring length of 1000 mm, it is well-suited for large CNC machines and industrial automation setups. It features the ENSIS half-duplex interface, which ensures stable and interference-resistant signal transmission. Designed for high-performance use, it maintains accuracy and reliability in challenging environments. Its rugged construction supports long-term durability and consistent measurement output. This scale integrates seamlessly with advanced CNC and motion control systems to deliver precise and efficient operation.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Cable length	: 29 m
Interface	ENSIS Interface Half Duplex
Length	1000 mm
Max. Response Speed	180 m/min
Model Number	ABSAT1304A-1000-S
Power Supply	5 VDC +/- 10% / 270 mA
Resolution	10 1/4m
Type	NC Linear Scale
Type	S-Type

10 nm Resolution – Provides extremely precise position feedback with 0.01 µm accuracy.
1000 mm Measuring Length – Suitable for large CNC machines and extended automation applications.
ENSIS Interface (Half Duplex) – Ensures stable, noise-resistant data transmission in industrial settings.
Durable Construction – Built to withstand heavy-duty use and maintain long-term performance.
High-Precision Performance – Ideal for applications that demand ultra-accurate position measurements.
Seamless CNC Integration – Easily integrates with advanced CNC controls and motion systems for consistent operation.
