Mitutoyo 559-502-34 | NC Linear Scale AT1344-200-S | S-Type | Mitsubishi MDS Interface | Resolution 0.01 ¼m

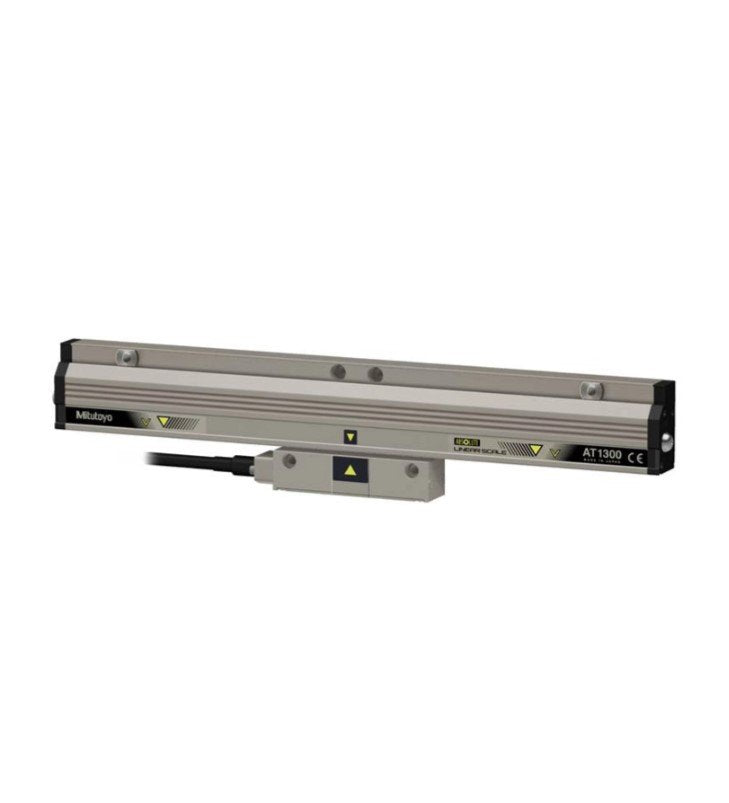

Name: Mitutoyo 559-502-34 | NC Linear Scale AT1344-200-S | S-Type | Mitsubishi MDS Interface | Resolution 0.01 ¼m
Brand: Mitutoyo
SKU: 559-502-34
Availability: OutOfStock

Part Number : 559-502-34

The Mitutoyo 559-502-34 NC Linear Scale (AT1344-200-S) delivers 0.01 μm (10 nm) resolution, making it ideal for ultra-precise motion control in CNC systems. With a 200 mm measuring length, it supports medium-travel axes in high-accuracy applications. Its robust S-Type construction provides exceptional stability against vibration and thermal drift. The scale integrates with Mitsubishi MDS interfaces for real-time and reliable CNC communication. Engineered for use in demanding industries such as precision machining, optical tooling, and high-end automation.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Current consumption [mA]	270 mA (maximum value)
Interface	Mitsubishi MDS
Length	Signal Cable: Maximum 29 m (signal cable + feedback cable)
Power Supply	5 VDC +/- 10%
Resolution	0.01 1/4m
Series	ABS AT1300-S Series
Type	S-Type

High Resolution: 0.01 μm for micron-level feedback and precision
200 mm Measuring Range: Suitable for medium-length linear applications
Mitsubishi MDS Interface: Seamless integration with Mitsubishi CNC platforms
S-Type Structure: Rigid and stable for harsh industrial environments
Applications: Perfect for fine milling, grinding, semiconductor tooling, and metrology systems

Mitutoyo 559-502-34 | NC Linear Scale AT1344-200-S | S-Type | Mitsubishi MDS Interface | Resolution 0.01 ¼m

DOWNLOAD CATALOG
