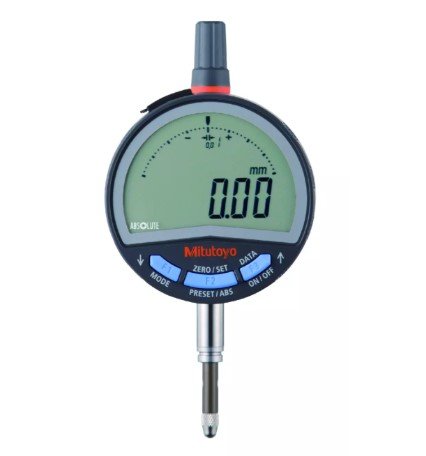

Mitutoyo 543-715B | Digital Indicator ID-C | Series 543 | Digital Step 0.01 mm | Hysteresis 0.02 mm | Range 12.7 mm | Diameter 8 mm | Weight 155 g

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 543-715B

The Mitutoyo 543-715B Digital Indicator from Series 543 is built for reliable, high-performance measurement in everyday applications. It offers a digital step of 0.01 mm, providing clear and precise measurements for general-purpose tasks. With a measuring range of 12.7 mm, it is versatile enough for a variety of standard measuring needs. A hysteresis of 0.02 mm ensures consistent and repeatable results across measurements. The 8 mm stem diameter allows easy attachment to standard holders. Weighing just 155 g, it is lightweight and easy to handle for prolonged use.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Alarm	Low voltage, setting errors, sensor error, display overflow a.s.o.
Analog/Digital	Digital
Auto shut-off	Yes
Battery Life	Approx. 2700 hours (continuous use)
Contact point	Carbide Ball
Data hold function	Yes
Digimatic data output	Yes
Digital step	0.01 mm
Display	LCD, character height 11 mm, 330° rotatable
GO/+/-NG judgement	Yes
Hysteresis	0.02 mm
Inch-Metric	Metric
Lock function	Yes
Max. permissible error	E MPE: 0.02 mm
Max. Response Speed	Unlimited
Measuring Force	0.2 - 0.5 N
Model Number	ID-C1012CNXB
ON/OFF	Yes
Power Supply	1 battery CR2032
Protection	IP42
Range	12.7 mm
Repeatability	0.01 mm
Scale	Electrostatic capacitance type absolute linear encoder
Series	543
Stem Dia	8 mm
Thread type	M2.5x0.45
Type	Digital Indicator
Type	EN ISO Standard
Weight	155 g

Digital step of 0.01 mm for precise and easy-to-read measurements
12.7 mm measuring range suitable for a variety of standard applications
Hysteresis of 0.02 mm ensures repeatable and reliable performance
Standard 8 mm stem diameter for compatibility with most holders
Lightweight at 155 g for easy handling and comfortable use
Part of the trusted Mitutoyo Series 543, known for accuracy and durability
