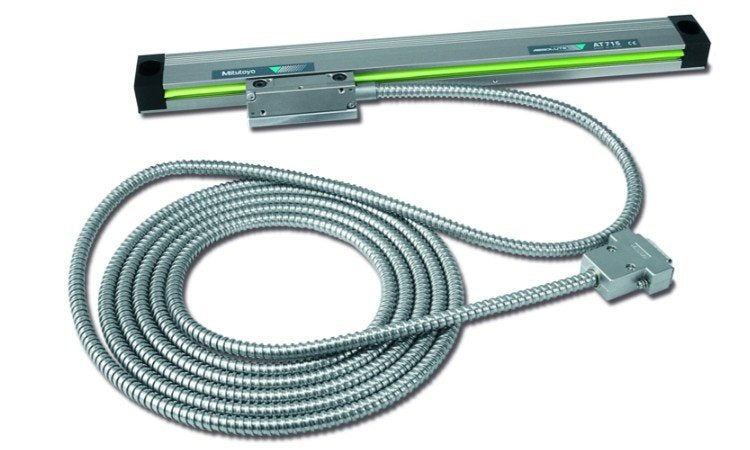

Mitutoyo 539-863R | Linear Scale AT715 | Electromagnetic Induction System | Cable Length 7 m | Effective Length 2500 mm | Mass 3.15 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-863R

The Mitutoyo 539-863R Linear Scale AT715-2500 is a high-precision measurement instrument utilizing an electromagnetic induction system for accurate linear displacement detection. It offers an effective measuring length of 2500 mm, making it suitable for large-scale industrial applications. The scale features a 7-meter cable length, providing flexibility in installation across various machine setups. With a mass of 3.15 kg, it ensures stable mounting and vibration resistance, contributing to consistent measurement accuracy. Designed for integration with digital readout systems, this model enhances precision and efficiency in machining processes.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm 600 to 1800 mm +/-7 µm 2000 to 3000 mm +/-10 µm
Cable length	: 7 m
Length	2500 mm
Mass (main unit)	3.15 kg
MAX. SPEED	Drive : 50 m Or min
Measuring method	Electromagnetic induction system
Model Number	ABS AT715-2500
Resolution	0.001 Or 0.005 (switchable via Counter)
Type	Linear Scale

Electromagnetic Induction System: Ensures high-accuracy measurement with excellent resistance to contaminants such as oil, dust, and coolant.
Effective Measuring Length of 2500 mm: Ideal for long-range measurement tasks in CNC machines and industrial equipment.
7-Meter Cable Length: Offers flexibility in installation for various machine configurations.
Mass of 3.15 kg: Provides stable mounting and vibration resistance for consistent accuracy.
Compatible with Digital Readout Systems: Easily integrates into DROs and control systems for precision positioning.
