Mitutoyo 539-814N | Linear Scale AT715-750 | Electromagnetic Induction System | Cable Length 3.5 m | Effective Length 750 mm | Mass 1.35 kg

Client Protection

Dedicated Support

Genuine Products

Client Protection

Dedicated Support

Genuine Products

Part Number : 539-814N

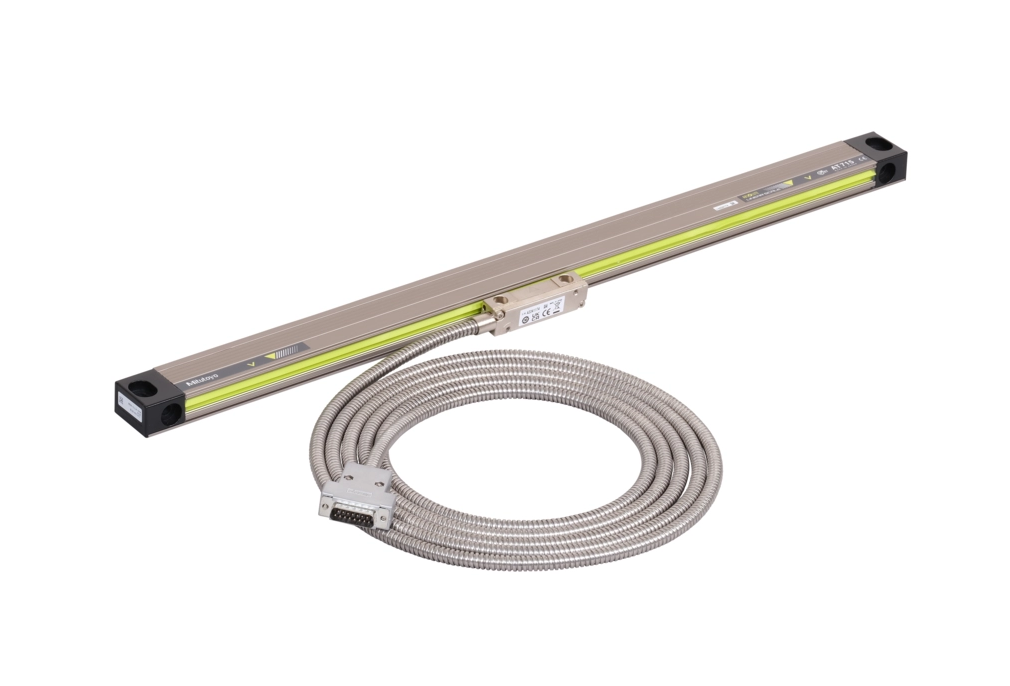

The Mitutoyo 539-814N Linear Scale AT715-750 is a high-precision measuring instrument designed for applications requiring extended linear measurements. Featuring an electromagnetic induction system, it delivers stable, accurate results and is resistant to contaminants like dust, oil, and coolant. With an effective measuring length of 750 mm, it is ideal for larger machines or setups. The scale includes a 3.5-meter cable, offering flexibility in installation. Weighing 1.35 kg, it provides a durable yet manageable solution for industrial use. This model is built for reliable, repeatable performance in demanding environments.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-750
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	1.35 kg

Electromagnetic Induction System – Employs the ABSOLUTE® electromagnetic induction principle, offering high environmental protection with an IP67 rating.
No Reference Point Setup Required – Detects and outputs the absolute position, eliminating the need for reference point setup at each power-on.
High Environmental Resistance – Designed to operate in harsh environments, making it suitable for use in machine tools and precision instruments.
Flexible Installation – The scale unit has two mounting directions, allowing easy installation on machining tools with difficult mounting positions.
Compatibility – Compatible with KA series display units, ensuring seamless integration into existing systems.
High-Speed Response – Maximum response speed of 50 m/min, suitable for high-speed measurement applications.
