Part Number : 539-808N

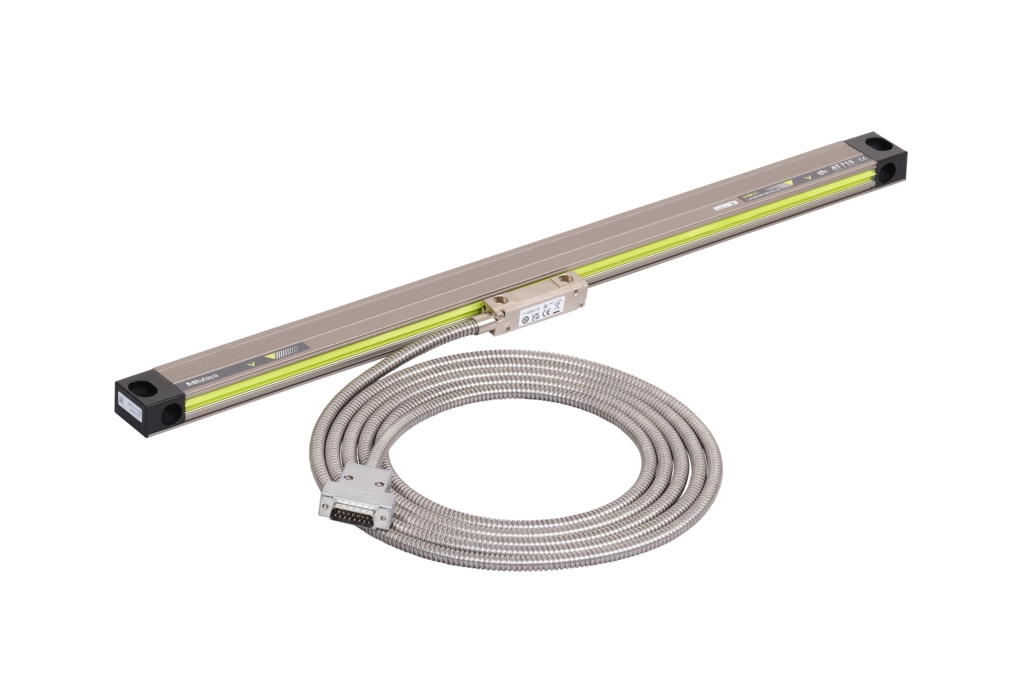

The Mitutoyo 539-808N Linear Scale AT715-450 is a high-precision measuring device engineered for industrial use. It operates on an electromagnetic induction system, offering superior resistance to dust, oil, and coolant. With an effective measuring length of 450 mm, it supports extended linear measurements with high accuracy. A 3.5-meter cable provides flexible installation in various machine setups. The unit weighs 1.05 kg, ensuring both stability and ease of mounting. Ideal for harsh environments, it delivers consistent and reliable performance in demanding applications.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 500 mm +/-5 µm; 600 to 1800 mm +/-7 µm; 2000 to 3000 mm +/-10 µm
Cable length	: 3.5 m
MAX. SPEED	50 m/min
Measuring method	Electromagnetic induction system
Model Number	AT715-450
Resolution	0.001 / 0.005 (switchable via Counter)
Type	Linear Scale
Weight	1.05 kg

Electromagnetic Induction System – Provides accurate, stable measurement with excellent resistance to environmental contaminants.
450 mm Effective Measuring Length – Supports longer-range measurements for larger machine setups.
Contamination Resistant – Non-contact design ensures reliable operation in dusty or oily conditions.
3.5 m Cable – Offers installation flexibility across various equipment configurations.
Lightweight and Compact – Weighs only 1.05 kg for easy mounting without compromising performance.
Built for Industrial Use – Ensures consistent, repeatable measurement in harsh production environments.
