Mitutoyo 539-153-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5750 mm | Mass 17.6 kg

Name: Mitutoyo 539-153-30 | Linear Scale AT103 | Cable Length 15 m | Effective Length 5750 mm | Mass 17.6 kg
Brand: Mitutoyo
SKU: 539-153-30
Availability: OutOfStock

Part Number : 539-153-30

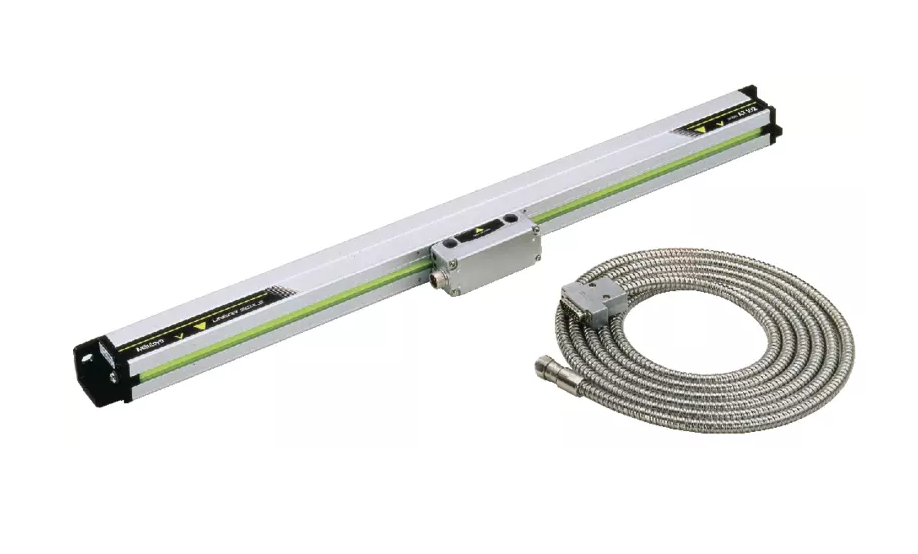

The Mitutoyo 539-153-30 Linear Scale AT103 is designed for high-precision measurement over extended distances in industrial environments. With an effective measuring length of 5750 mm, it supports large-scale machinery applications. The 15-meter armored cable ensures durability and flexibility for easy installation. Weighing 17.6 kg, the scale offers stability and minimizes vibration during operations. It is IP53-rated, offering protection from dust and light moisture. Fully compatible with Mitutoyo DRO systems, it provides reliable, accurate performance in demanding conditions.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 15 m
MAX. SPEED	50 m/min.
Model Number	AT103-5750
Output	Waveform: Two 90° phased-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: 50 mm
Type	Linear Scale
Weight	17.6 kg

Effective Measuring Length: 5750 mm, perfect for large-scale industrial applications.
High Accuracy: Delivers (5 + 8L/1000) µm precision over extended distances.
Durable Construction: IP53-rated for protection against dust and light moisture.
Long Armored Cable: 15-meter cable for flexibility and robust installation.
Stable Operation: Weighs 17.6 kg, ensuring vibration resistance and stable measurements.
Signal Compatibility: Dual 90° phase-shifted sinusoidal signals, compatible with Mitutoyo DRO systems.
