Mitutoyo 539-138-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 2400 mm | Mass 7.1 kg

Name: Mitutoyo 539-138-30 | Linear Scale AT103 | Cable Length 7 m | Effective Length 2400 mm | Mass 7.1 kg
Brand: Mitutoyo
SKU: 539-138-30
Availability: OutOfStock

Part Number : 539-138-30

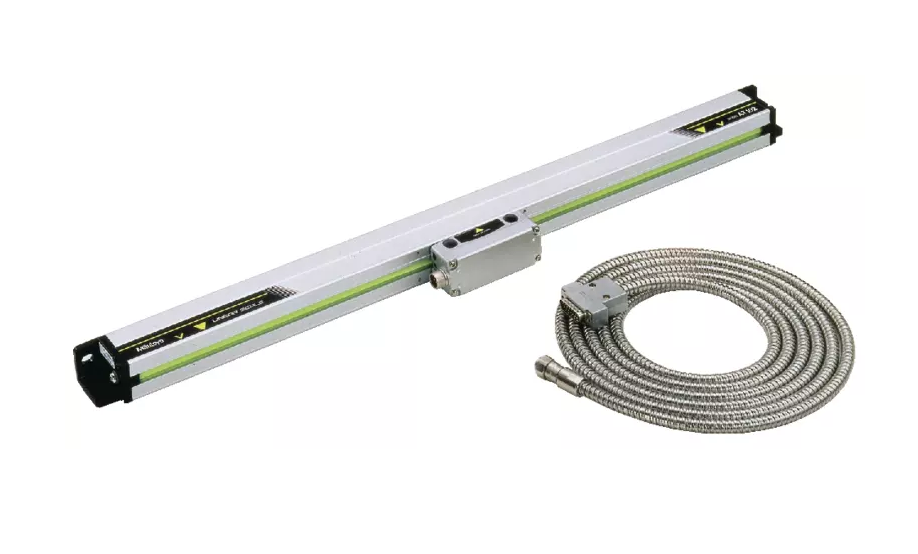

The Mitutoyo 539-138-30 is a high-precision linear scale designed for accurate measurement applications. It offers an effective measuring length of 2400 mm, making it suitable for medium to large-scale setups. The scale features a 7-meter armored signal cable, ensuring durability and flexibility in various environments. With a mass of 7.1 kg, it provides a solid and stable build for consistent performance. The scale operates with high accuracy and speed, delivering reliable measurements for demanding applications. It is compatible with Mitutoyo's digital readout systems, ensuring seamless integration into existing setups.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	100 to 3000 mm (5+5L/1000) µm, 3250 to 6000 mm (5+8L/1000) µm L = Effective range (mm)
Cable length	: 7 m
MAX. SPEED	120 m/min.
Model Number	AT103-2400
Output	Waveform: Two 90° phase-shifted sinusoidal signals
Protection	IP53
Scale	Reference Points: Every 50 mm
Type	Linear Scale
Weight	7.1 kg

High Accuracy: Precision of (5 + 5L/1000) µm, ideal for demanding linear measurement tasks.
Effective Measuring Length: 2400 mm, suitable for large machine tools and systems.
Extended Cable Length: 7-meter armored cable for versatile and protected installation.
Robust Design: Weighs 7.1 kg and built with IP53-rated protection against dust and moisture.
Fast Measurement Capability: Supports speeds up to 120 m/min for efficient operation.
Signal Compatibility: Outputs dual 90° phase-shifted sinusoidal signals for Mitutoyo KA and KLD DROs.
