Part Number : 516-199-24

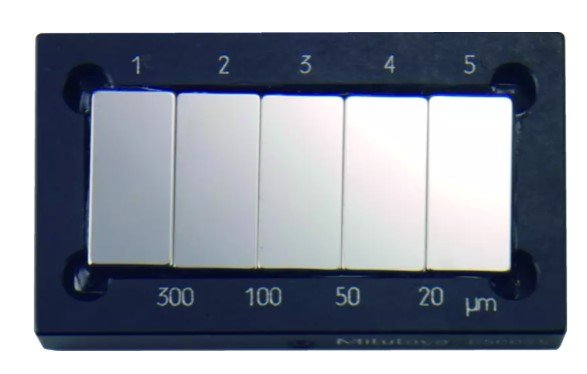

The Mitutoyo 516-199-24 Step Master is a precision calibration tool designed for ultra-fine vertical measurements in metrology applications. This model offers four incremental steps of 300 µm, 100 µm, 50 µm, and 20 µm, constructed from high-precision steel blocks. Each adjacent step is calibrated to a resolution of 0.01 µm using an interferometer with an accuracy tolerance of ±0.20 µm. The device is delivered in a wooden case with a JCSS (Japan Calibration Service System) calibration certificate, verifying its traceability to national standards. Weighing only 0.15 kg, it is lightweight and easy to handle.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Height	Block step: 300, 100, 50, 20 µm
Inch-Metric	Metric
Mass (main unit)	0.15 kg
Material	Steel
Series	516
Type	Step Master with JCSS Certificate

Precision Calibration: Provides four precise height increments—300 µm, 100 µm, 50 µm, and 20 µm—ideal for fine adjustments and calibrations.
High-Resolution Measurement: Each step is calibrated to a resolution of 0.01 µm using an interferometer, ensuring exceptional accuracy.
Traceable Certification: Comes with a JCSS calibration certificate, verifying traceability to national standards.
Durable Construction: Made from high-precision steel blocks, offering durability and long-term reliability.
Compact and Lightweight: Weighs only 0.15 kg, making it easy to handle and transport.
