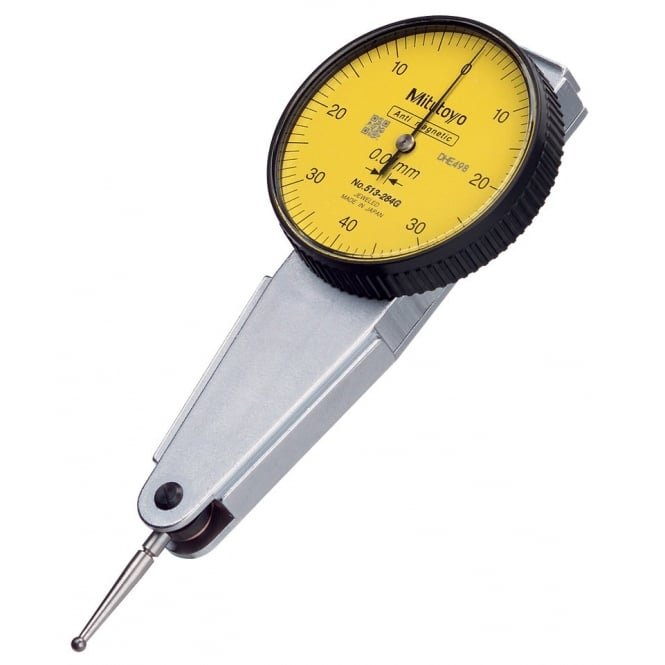

Mitutoyo 513-284GE | Parallel Lever Indicator | 0.8 mm range, 0.01 mm grad
The Mitutoyo 513-284GE is a parallel lever indicator (dial test indicator) reading 0.01 mm per division over 0.8 mm. Alignment of machine tools and similar jobs is what the 513-284GE is designed for.
- 513-284GE adapts to the measuring direction automatically on contact
- Low-friction jewelled movement (513-284GE)
- Dial reading 0-40-0, measuring force 0.3 N or less (513-284GE)
- A basic set of mounting accessories is included with the 513-284GE
- Analogue dial on the 513-284GE, reading in millimetre, with no data output
- Specifications
| Part Number | 513-284GE |
| Brand | Mitutoyo |
| Type | Lever indicator (dial test indicator) |
| Range | 0.8 mm (0.031 in) |
| Graduation | 0.01 mm |
| Dial Reading | 0-40-0 |
| Measuring Force | 0.3 N or less |
| Style | Parallel |
| Measuring Units | Millimetre |
| Data Output | No |
| Display | Analogue (non-digital) |
| Supplied With | Basic mounting accessory set |
